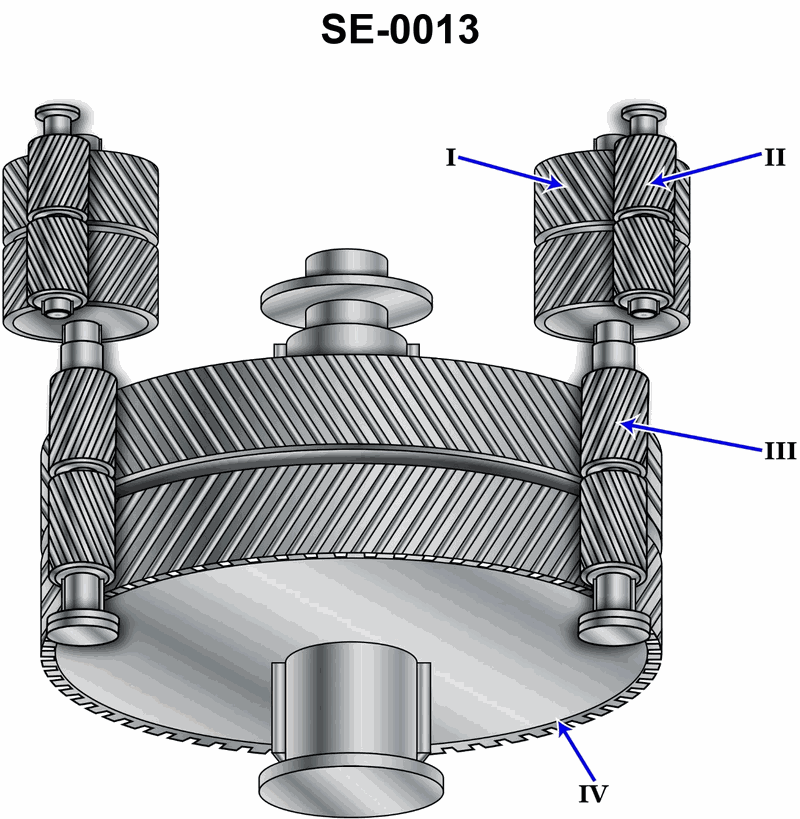

The component labeled "II", as shown in the illustration, is called the __________. Illustration SE-0013
