🔍 Key Concepts
• Identify the overall assembly in the illustration (what kind of pump or engine component it is) and then decide what system it belongs to.

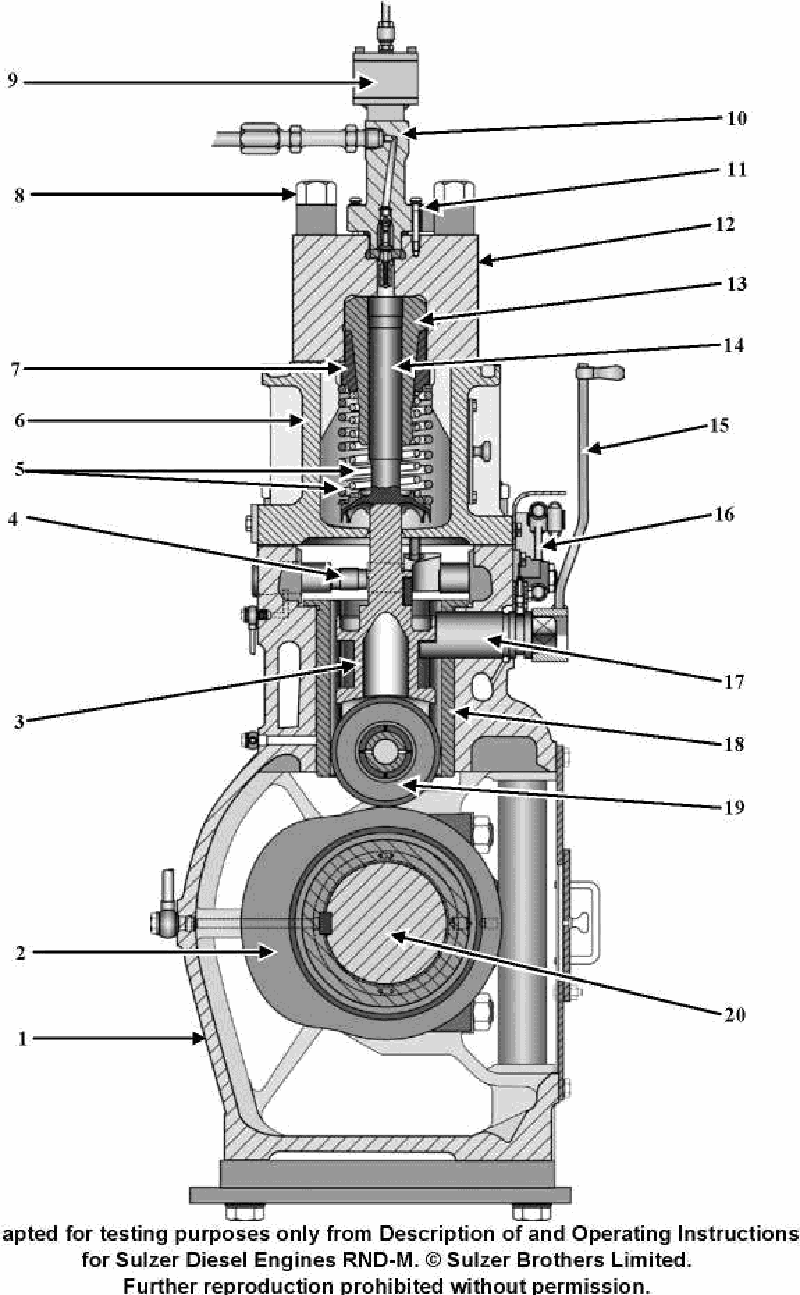

• Notice that item #9 is connected by a small line and sits above the main plunger and cam — consider whether it is handling main fuel flow, lubrication oil, or a control signal.
• Think about how a large slow‑speed diesel engine is normally shut down or its fuel limited: which part of the pump does an emergency device usually act on?
💭 Think About
• Trace internally from item #9: what moving part inside the pump does it appear to act upon (plunger, suction valve, or some sort of control rod)?
• Compare the size and position of the connection at #9 with a typical high‑pressure fuel line to an injector or a cylinder lubricator quill — does it look like a main delivery line or a small control/signal line?
• Ask yourself which of the listed systems (metering, pressure delivery, cylinder lubrication, safety shutdown) would logically use a separate small actuator on top of the fuel pump body.
✅ Before You Answer
• Verify whether item #9 is on the high‑pressure fuel path from the plunger to the injector, or if it seems to bypass the main fuel flow.
• Check if any linkage from #9 can override or move the pump’s control elements (such as a tappet, suction valve lifter, or control rod), which would indicate a control/safety function rather than normal metering or delivery.
• Confirm that nothing about #9 resembles a cylinder lubricator (no multiple quill outlets to the liner, no direct connection to the cylinder), helping you confidently eliminate at least one wrong option.
