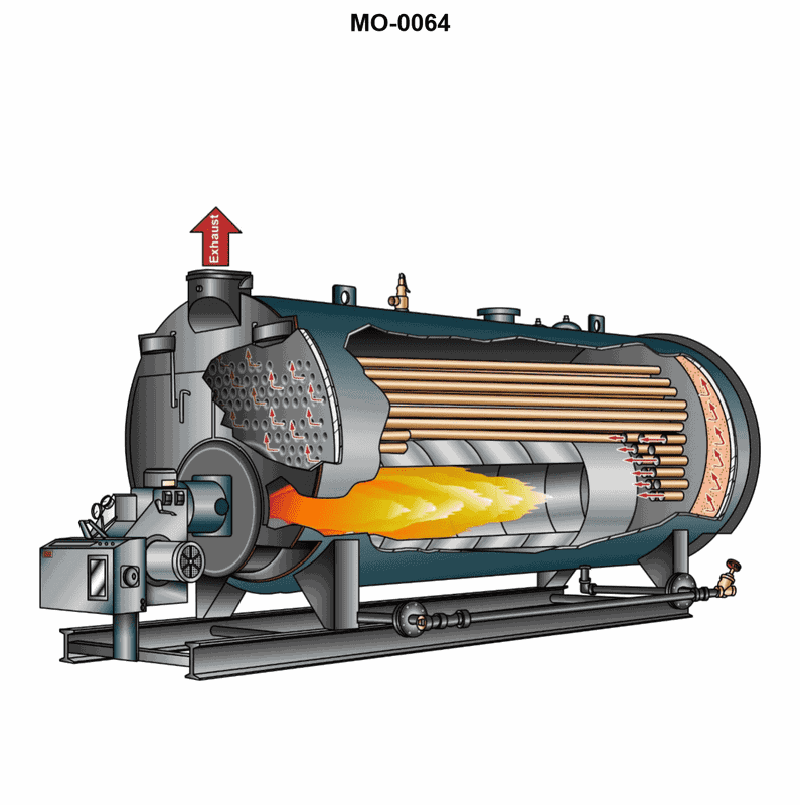

The boiler shown in the illustration would be classed as __________. Illustration MO-0064

Back

Question 1 of 20

66636eed28f7522a1c51de60

The boiler shown in the illustration would be classed as __________. Illustration MO-0064

No comments yet

Be the first to share your thoughts!

If the question has a related picture, it will appear here.

🔍 Key Concepts

• How to distinguish fire-tube vs water-tube boilers by looking at where the water is and where the hot gases are • What makes a boiler Scotch marine (shape, furnace location, tube arrangement) • What single-pass vs two-pass gas flow means inside a boiler

💭 Think About

• First, decide if the water is mainly in the big outer shell or in the small tubes shown. What does that tell you about fire-tube vs water-tube? • Next, trace the path of the flame and hot gases in the illustration. How many distinct times do the gases travel the full length of the boiler shell? • Finally, compare what you see to a coil-type forced-circulation boiler. Do you see tight coils of tubing, or a large cylindrical shell with straight tubes and a furnace?:

✅ Before You Answer

• Verify whether the hot gases are inside the tubes or outside them • Verify whether the gases change direction once (making two passes) or not at all (single pass) • Verify if the overall look matches a Scotch marine boiler: horizontal cylinder, internal furnace at one end, return tubes inside a single large shell of water

👋 Hi! I'm Genie, your AI study assistant. How can I help you with this question?

Quick actions

— No credit card needed

Question 1 of 20

The boiler shown in the illustration would be classed as __________. Illustration MO-0064

single-pass, fire-tube, scotch marine

two-pass, scotch marine

forced circulation, coil-type

two-pass, water-tube
