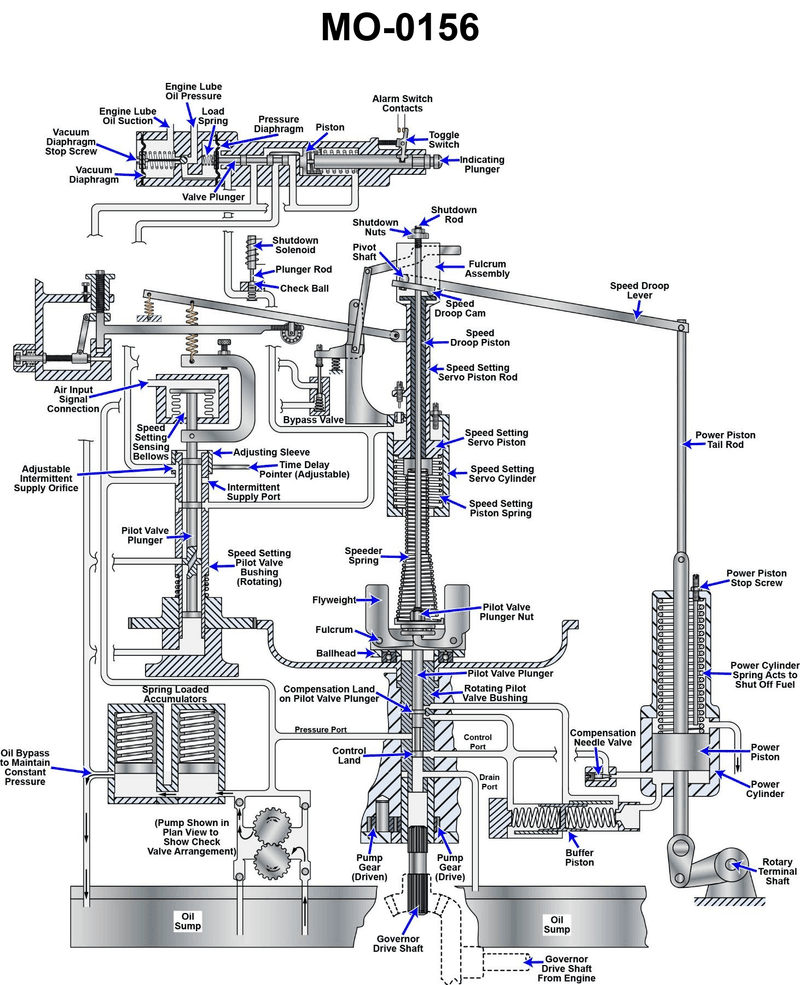

Suppose the main propulsion diesel engines on your river pushboat are fitted with pressure-compensated governors as shown in the illustration. What function does the engine lube oil pressure connection provide? Illustration MO-0156
