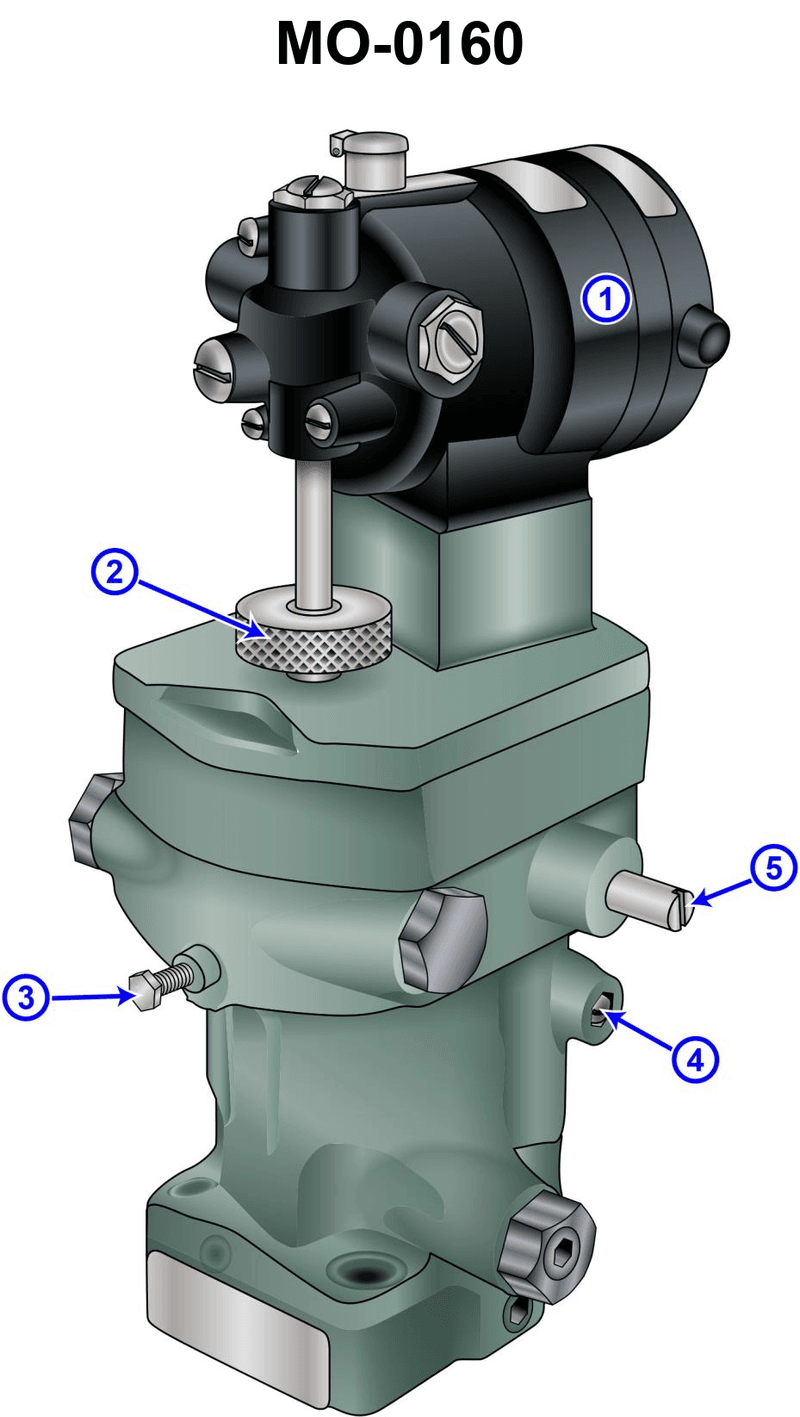

Suppose the generator set drive engines on your ship docking tug are fitted with hydraulic isochronous governors such as shown in the illustration. How is the speed set point conveyed from the generator control panel on the main switchboard conveyed to the governor fitted on the diesel engine? Illustration MO-0160
