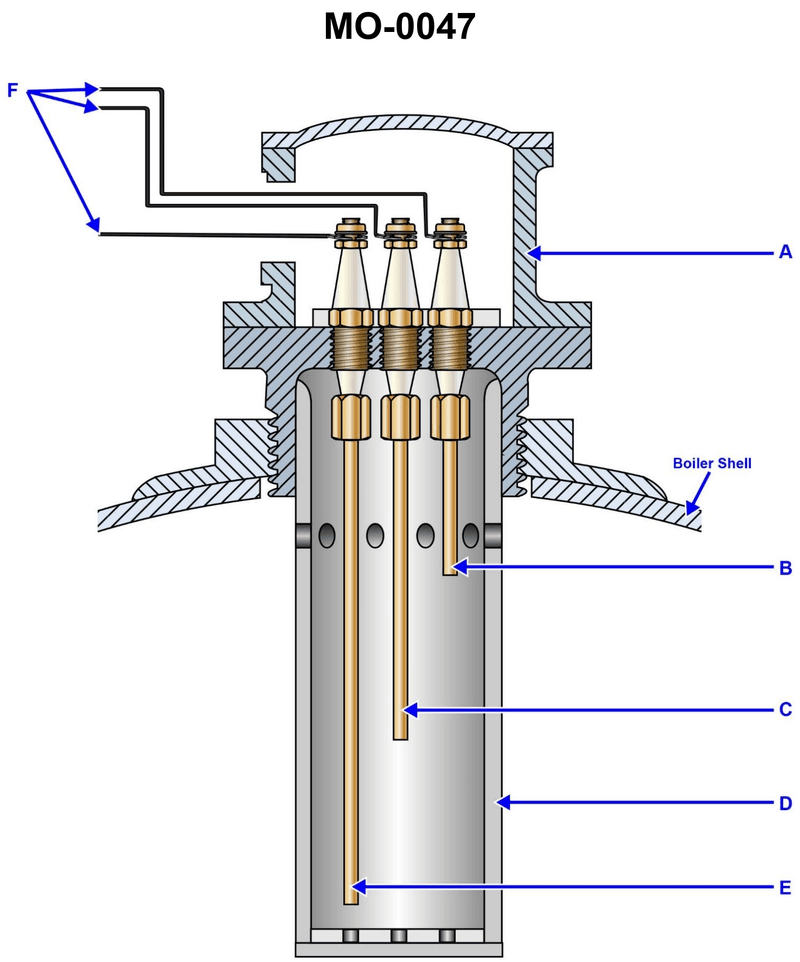

Regarding the water level electrode assembly shown in the illustration, arrow "C" indicates the point at which the __________. See illustration MO-0047.
