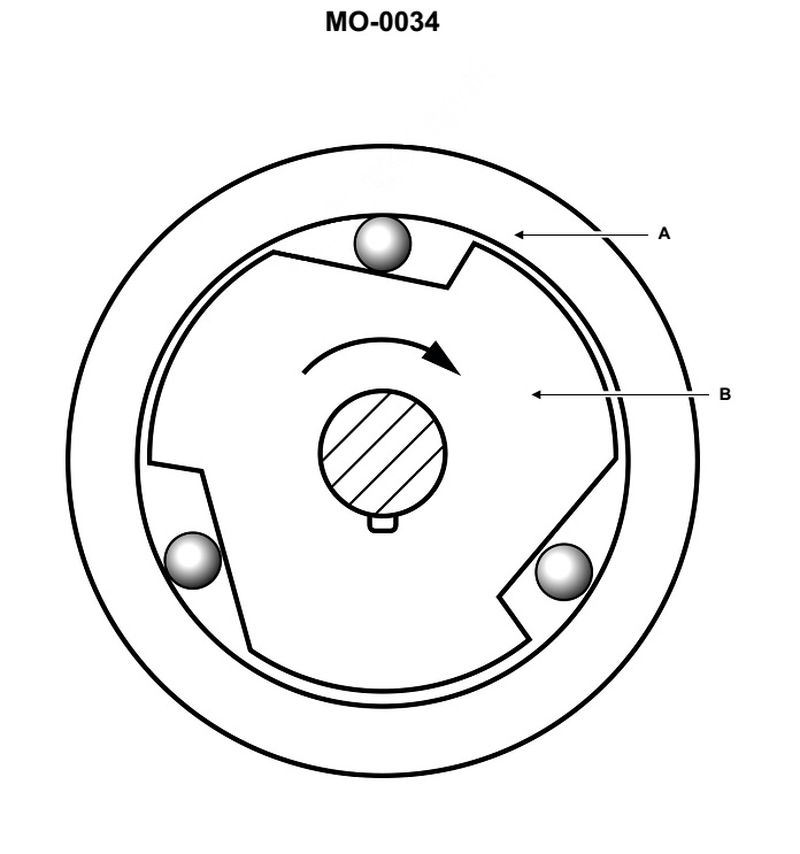

Regarding the overrunning clutch shown in the illustration, you would expect __________. See illustration MO-0034.
