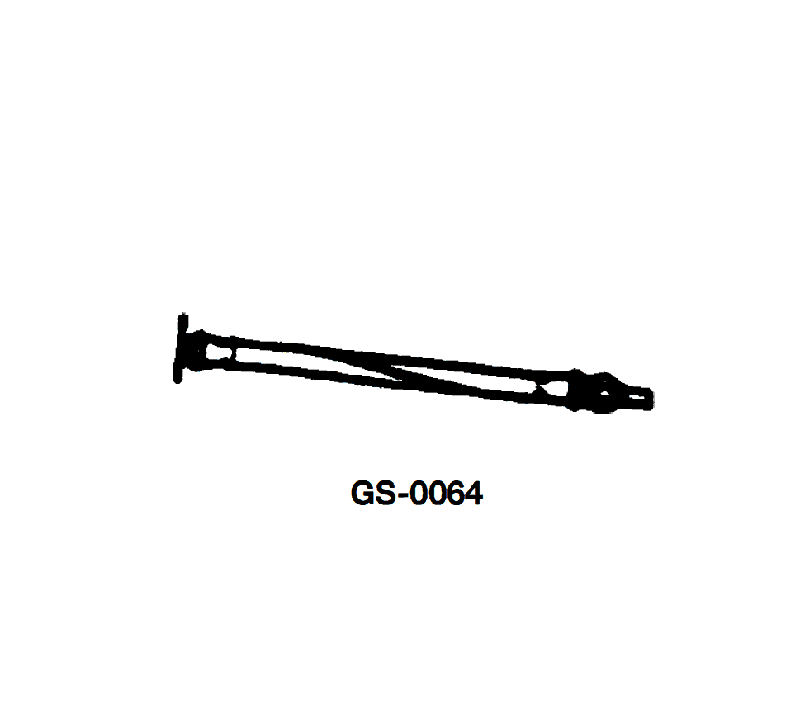

Regarding the hydraulic hose installation illustrated, the hose __________. See illustration GS-0064.

Back

Question 1 of 27070

Regarding the hydraulic hose installation illustrated, the hose __________. See illustration GS-0064.

If the question has a related picture, it will appear here.

🔍 Key Concepts

• Consider how a hydraulic hose changes length and diameter when it is pressurized. • Look at where the hose is restrained or clamped in the illustration and which part is free to move. • Think about the effect of flow from left to right on a hose that may already have some twist or tension in it.

💭 Think About

• Which part of the hose has the most freedom to bulge or change shape when pressure comes on: the section nearer the left fitting, the right fitting, or is it secured evenly? • If the hose tries to straighten or shorten under pressure, which fitting would feel the greatest pull: the left or the right side? • Does the picture suggest a neat, straight installation or one that is slightly twisted or strained between the two ends?

✅ Before You Answer

• Identify which side of the hose appears more twisted or strained in the drawing. • Decide whether the hose looks properly supported or if one end could be pulled by pressure and movement. • Before choosing, ask: Would this setup be considered good practice for hydraulic hoses on a vessel, or does something look likely to move or come loose?

Question 1 of 27070

Regarding the hydraulic hose installation illustrated, the hose __________. See illustration GS-0064.

will expand under pressure to the left of center with flow from left to right

will expand under pressure to the right of center with flow from left to right

is properly installed

can pull away from the right hand pipe fitting with flow from left to right
