Referring to the illustrated steam plant sea...

Question 1 / 2066636eee28f7522a1c51f13a

Question 1 of 2066636eee28f7522a1c51f13a

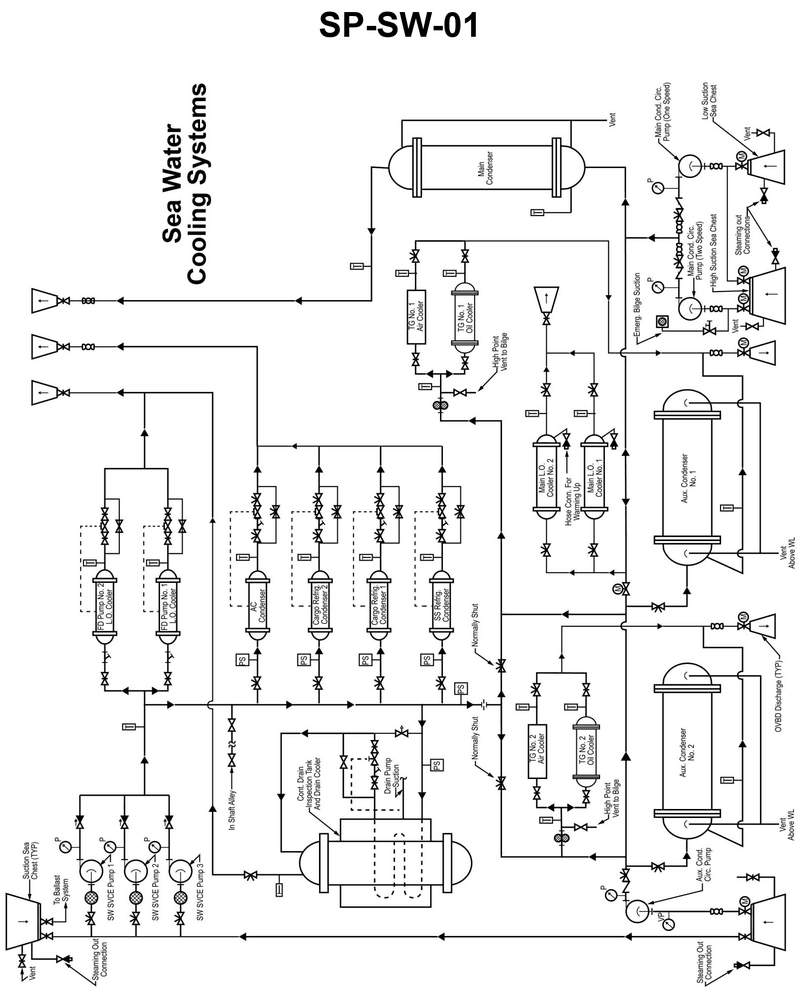

Referring to the illustrated steam plant sea water cooling system drawing, what statement is true concerning sea water service system to auxiliary circulating sea water system cross-connect capability? Illustration SP-SW-01
