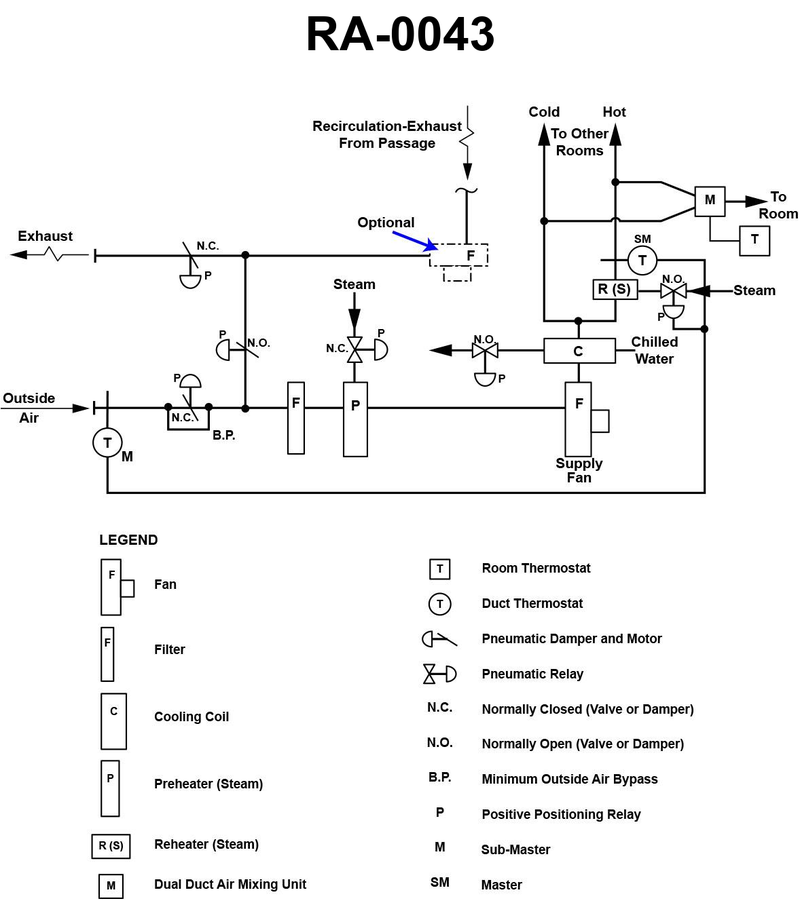

Referring to the illustrated dual duct multiple zone HVAC system, how is the space temperature directly controlled? Illustration RA-0043
