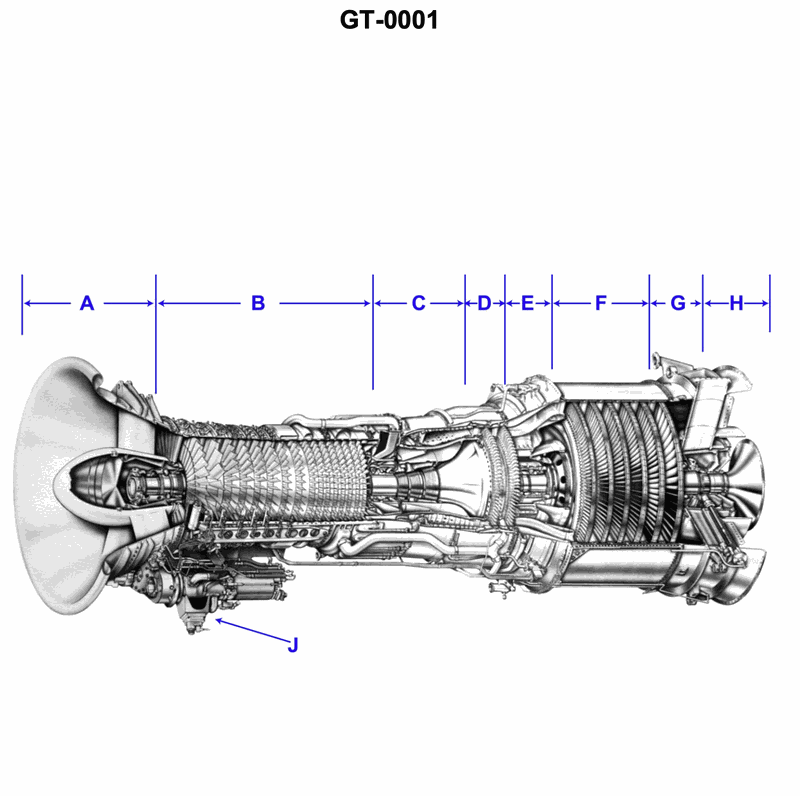

On the gas turbine shown in the illustration, which of the following best describes the main principle of operation of the component contained within the area labeled "C"? Illustration GT-0001
