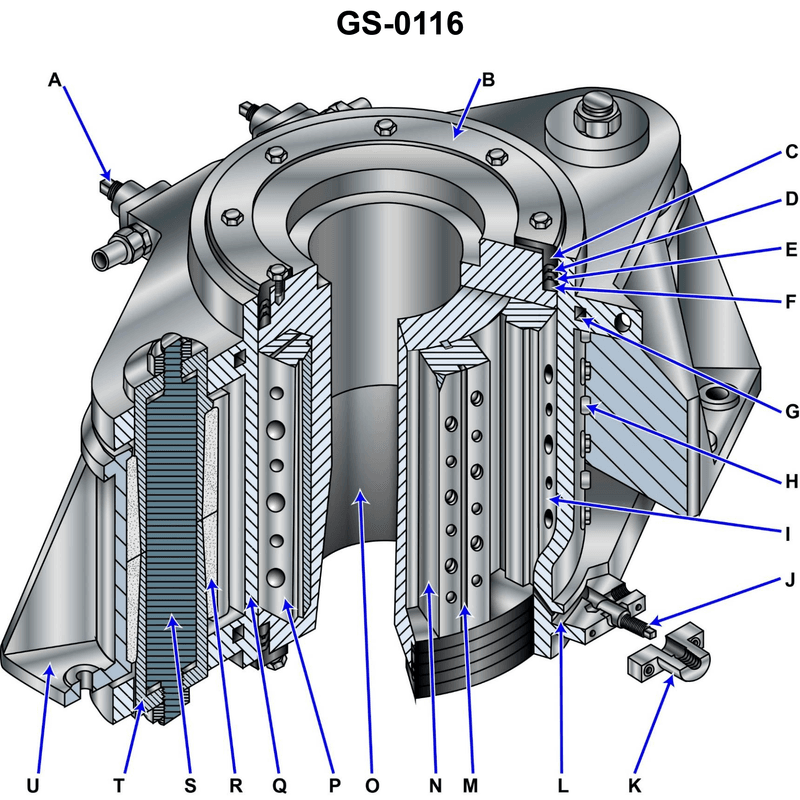

Oil is supplied to the illustrated steering gear __________. See illustration GS-0116.

Back

Question 1 of 20

5eccef9cbacbc34ba4d45a06

Oil is supplied to the illustrated steering gear __________. See illustration GS-0116.

No comments yet

Be the first to share your thoughts!

If the question has a related picture, it will appear here.

🔍 Key Concepts

• Study how hydraulic pressure oil normally enters a rotary-vane steering gear housing • Compare the labels A, B, J, O, U on the illustration and decide which ones are actual pressure inlets versus covers, clamps, or feedback parts • Remember that high‑pressure steering lines are usually rigid piping into fixed housings, not flex lines into moving parts

💭 Think About

• Which labeled points on the drawing are on the fixed housing and look like threaded ports for high‑pressure piping? • Do any of the options describe oil entering through a part that moves with the rudder stock (which would be incorrect for a permanent pressure supply)? • Look closely at "O" and "J" on the drawing: do they appear to be internal galleries/plates or external supply connections?

✅ Before You Answer

• Verify which label(s) show an actual external pipe connection on the side of the steering gear housing • Confirm that the chosen location would allow oil to reach the internal pressure chambers shown by the drilled passages and galleries • Eliminate any option that would require flexible hoses to be attached to parts that rotate with the rudder stock, as this is not how this gear is normally supplied

👋 Hi! I'm Genie, your AI study assistant. How can I help you with this question?

Quick actions

— No credit card needed

Question 1 of 20

Oil is supplied to the illustrated steering gear __________. See illustration GS-0116.

through flexible hydraulic hoses via the connection ports located in the top surface of "O"

via the connections indicated as "J"

through high pressure piping at "A" and then internal ports provided in the housing assembly "U"

via hydraulic hoses connected to the orifices in "B"
