Line "K" shown in the illustration is the...

Question 1 / 205eccefa3bacbc34ba4d47c8a

Question 1 of 205eccefa3bacbc34ba4d47c8a

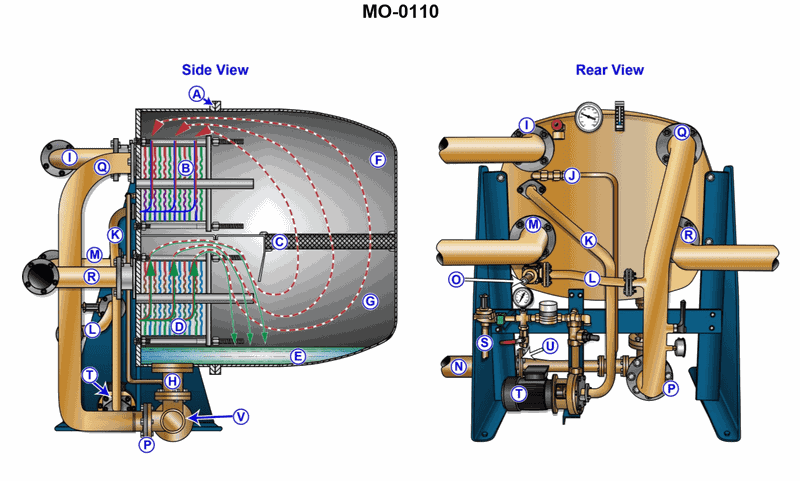

Line "K" shown in the illustration is the __________. Illustration MO-0110

Back

Question 1 of 20

5eccefa3bacbc34ba4d47c8a

Line "K" shown in the illustration is the __________. Illustration MO-0110

No comments yet

Be the first to share your thoughts!

If the question has a related picture, it will appear here.

🔍 Key Concepts

• Flow paths of brine, feedwater, and distillate in a low‑pressure flash evaporator • Where the brine eductor picks up concentrated brine from the evaporator shell • Difference between a line that is an inlet to the unit versus a suction to a pump or eductor

💭 Think About

• Trace where the seawater enters the unit, where it is heated, and where the concentrated brine must leave the shell • Look at which component line K is physically connected to on the rear view: is it tied to the evaporator shell, the distillate pump, or the eductor body? • Ask yourself: from this point in the system, is fluid being supplied TO the evaporator, or is it being DRAWN AWAY by another device?

✅ Before You Answer

• Verify whether line K connects directly to the eductor body or to a heater/feed connection • Check if line K is located near the concentrated brine collection area at the lower part of the shell, where brine would be removed • Confirm whether line K is on the suction side (throat) of the eductor or on a pressure/ discharge side; this will distinguish between an inlet and a suction connection

👋 Hi! I'm Genie, your AI study assistant. How can I help you with this question?

Quick actions

— No credit card needed

Question 1 of 20

Line "K" shown in the illustration is the __________. Illustration MO-0110

Brine eductor inlet

Feedwater inlet

Distillate pump suction

Brine eductor suction
