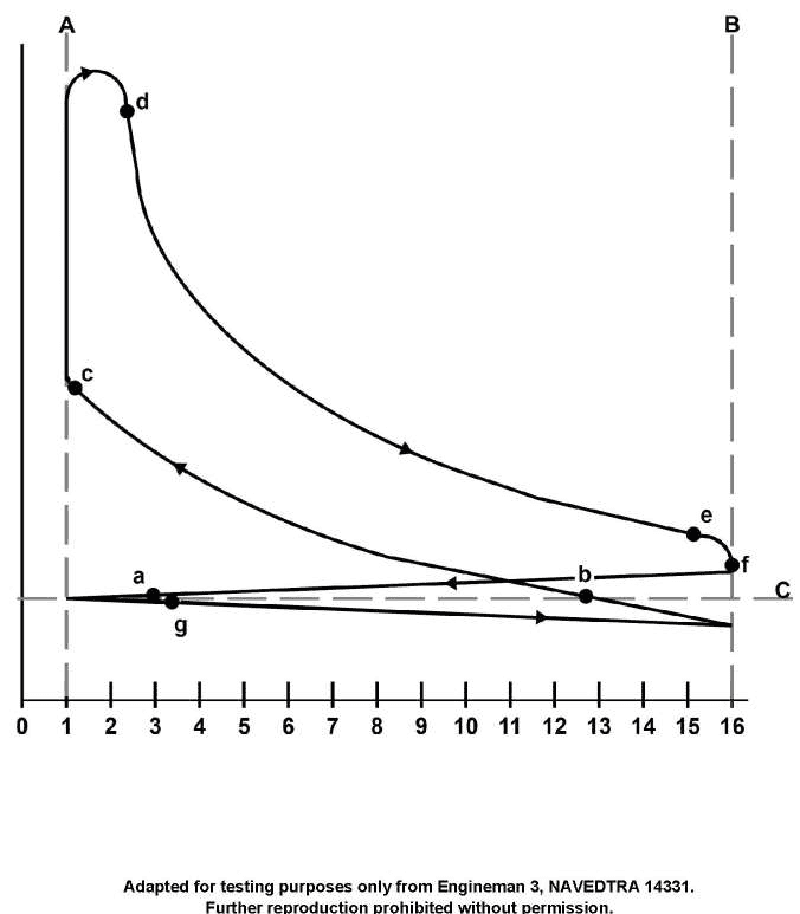

In the pressure-volume diagram, shown in the illustration, the volume line is divided into 16 units indicating __________. Illustration MO-0035

Back

Question 1 of 20

5eccefa1bacbc34ba4d473e3

In the pressure-volume diagram, shown in the illustration, the volume line is divided into 16 units indicating __________. Illustration MO-0035

No comments yet

Be the first to share your thoughts!

If the question has a related picture, it will appear here.

🔍 Key Concepts

• On a pressure-volume (P‑V) diagram, the horizontal axis represents cylinder volume, not time or crank angle. • The compression ratio of a reciprocating engine is the ratio of the total cylinder volume at bottom dead center to the clearance volume at top dead center. • Think about whether the numbers 0–16 on the volume axis must be actual cubic inches/PSI/degrees, or could instead be dimensionless units showing a ratio.

💭 Think About

• First, decide what each axis of this P‑V diagram represents and whether crankshaft degrees or pressure would normally appear on the horizontal or vertical axis. • Ask yourself: if the volume scale runs from 0 to 16 units, what does the point of minimum volume (near A) represent compared to the point of maximum volume (near B)? • Consider which choice depends on an exact numeric value (like cubic inches, PSI, or degrees) and which choice can be shown using a simple, unitless scale from 1 to 16.

✅ Before You Answer

• Verify that on standard P‑V diagrams, pressure is plotted on the vertical axis and volume on the horizontal axis. • Check whether a compression ratio needs specific units (like cubic inches) or is expressed as a pure number (for example, X to 1). • Confirm that crankshaft motion in degrees is normally shown on an indicator diagram of pressure vs. crank angle, not on a pure P‑V diagram.

👋 Hi! I'm Genie, your AI study assistant. How can I help you with this question?

Quick actions

— No credit card needed

Question 1 of 20

In the pressure-volume diagram, shown in the illustration, the volume line is divided into 16 units indicating __________. Illustration MO-0035

a cylinder volume of 166 cubic inches

compression pressure is 1600 PSI

a 16 to 1 compression ratio

16� of crankshaft motion between lines A and B
