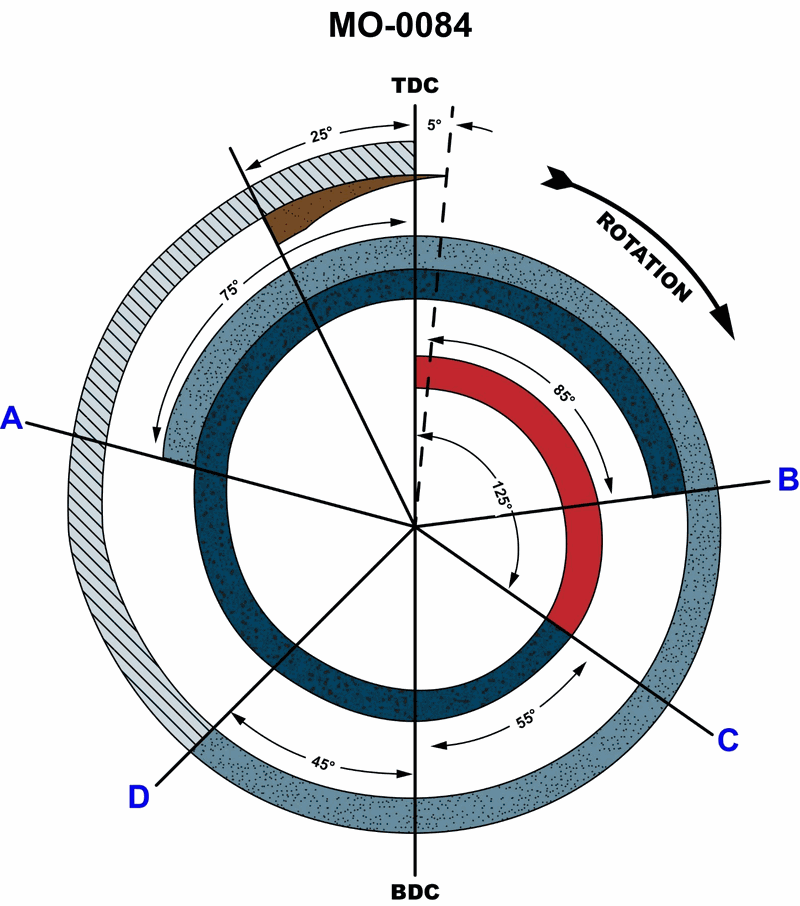

In the illustration, the intake valve closes at what point on the four-stroke cycle engine diagram shown? Illustration MO-0084
