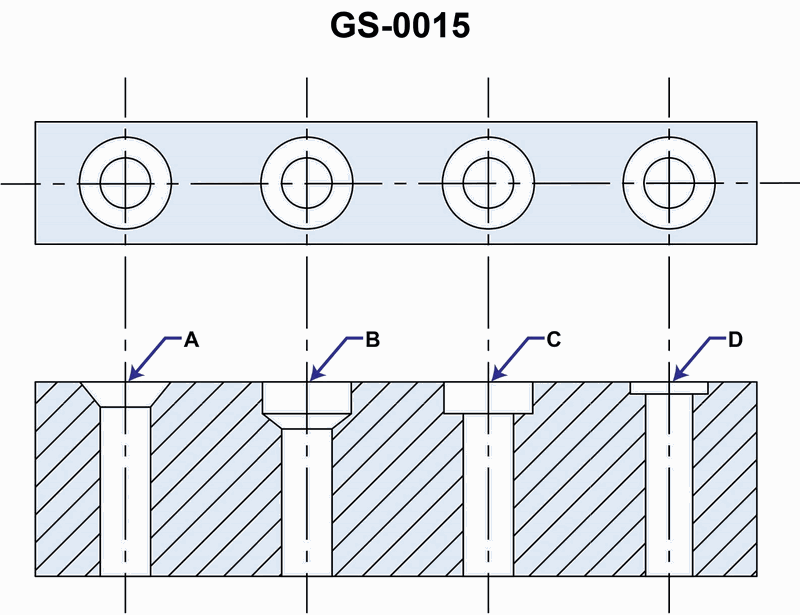

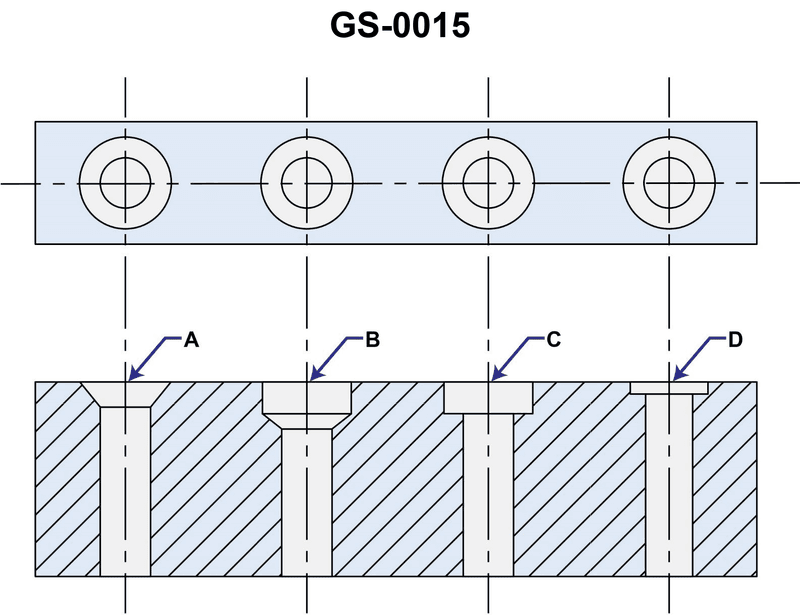

In the illustration shown, what is the proper description of the hole represented by "C"? Illustration GS-0015

Back

Question 1 of 20

66636eee28f7522a1c51ebcf

In the illustration shown, what is the proper description of the hole represented by "C"? Illustration GS-0015

No comments yet

Be the first to share your thoughts!

If the question has a related picture, it will appear here.

🔍 Key Concepts

• Match each label (A, B, C, D) to common machine-shop hole types: countersunk, counterbored, counterdrilled, spot-faced. • Focus on the shape of the top enlargement of each hole (conical vs. cylindrical, deep vs. shallow). • Remember that some operations are meant to seat a fastener head (like a bolt or screw) and others just clean/flatten a surface.

💭 Think About

• Look closely at hole C: is its upper enlargement deep or shallow compared to B and D, and does it look like it is meant to fully recess a bolt head or just alter the entry of the hole? • Which type of hole is typically used to create a flat bearing surface on a rough casting, and which is simply a second drilling operation with a larger diameter? • Compare C to B: both are cylindrical enlargements. What subtle difference in depth and purpose would distinguish a counterbore from a counterdrill or a spotface?

✅ Before You Answer

• Identify which illustration clearly shows a conical mouth (that one is the countersunk hole; eliminate that choice for C). • Decide which one shows a deep cylindrical recess with a flat bottom sized for a bolt head (that one is the counterbore; eliminate that choice for C). • Between the remaining two terms, ask: which one describes a shallow surface-cleaning flat around the hole vs. which one describes a step-drilled, larger-diameter section of the same hole? Match that idea to what you see at C.

👋 Hi! I'm Genie, your AI study assistant. How can I help you with this question?

Quick actions

— No credit card needed

Question 1 of 20

In the illustration shown, what is the proper description of the hole represented by "C"? Illustration GS-0015

Counter bored

Countersunk

Counter drilled

Spot-faced
