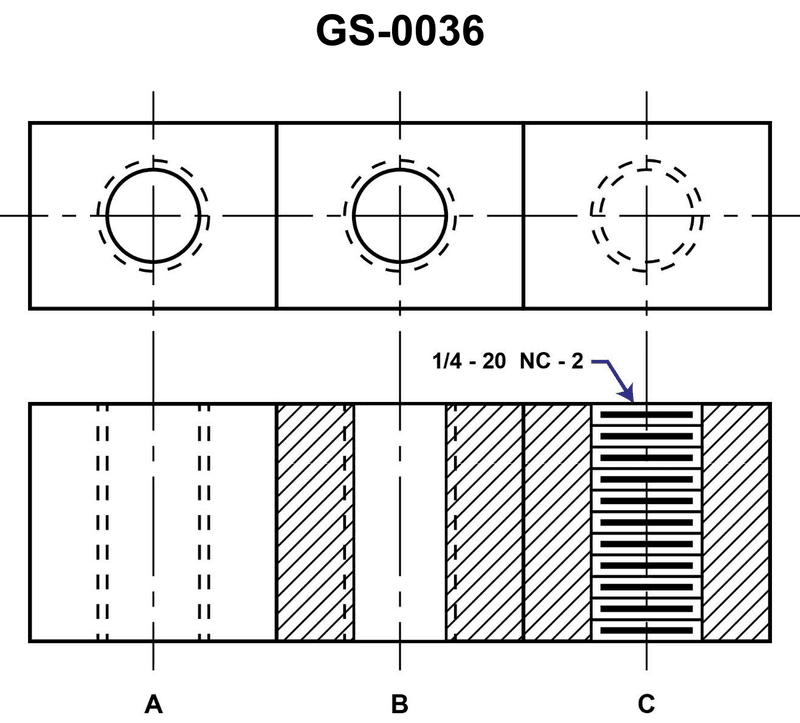

In the illustration shown, the last numeral in the notation 1/4-20 NC-2 indicates the __________. See illustration GS-0036.
