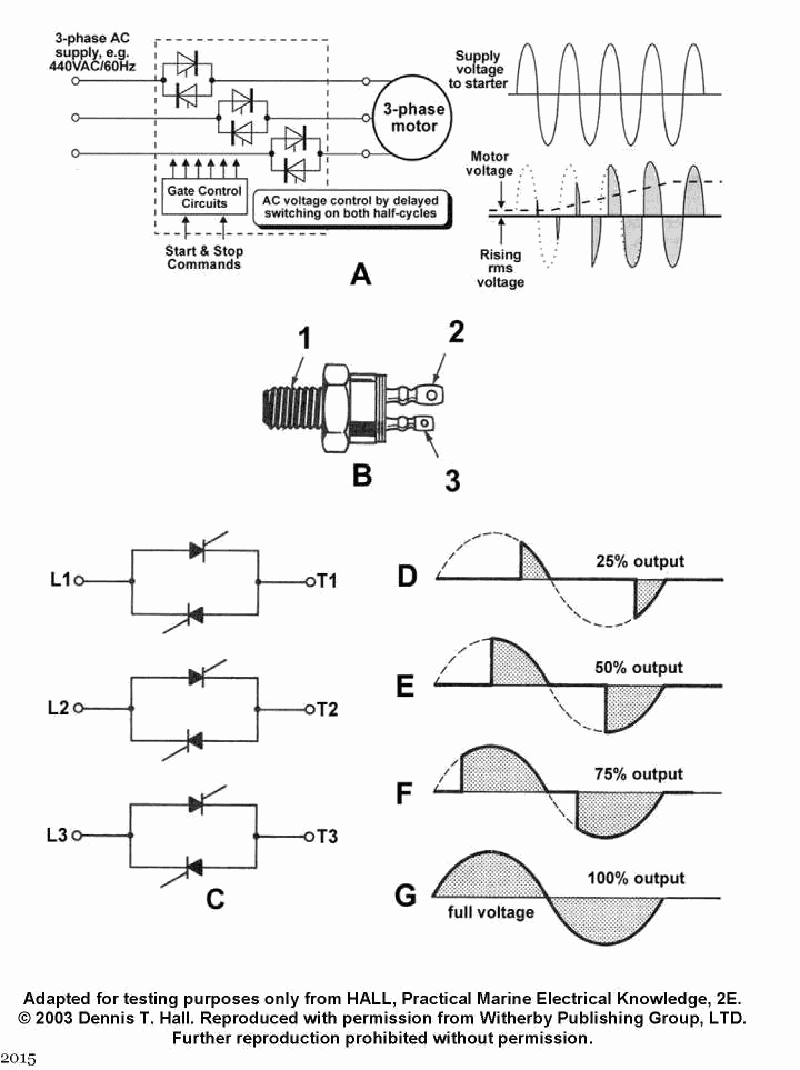

In the illustrated silicon controlled rectifier as shown in illustration "B", which labeled lead of the SCR represents the gate? See illustration EL-0060.

Question 1 of 27070

Study area:

Study area:

Q

In the illustrated silicon controlled rectifier as shown in illustration "B", which labeled lead of the SCR represents the gate? See illustration EL-0060.

No Illustration

This question does not have an illustration

🔍 Key Concepts

• Identify the three SCR connections: anode, cathode, and gate • On a stud-mounted SCR, the stud body usually carries the main current and is one of the main terminals • The gate lead is the low-current control lead connected to the firing circuit, not the main power path

💭 Think About

• Looking at illustration B, which numbered lead is clearly the heavy mechanical mounting and main-current path for the device? • Of the remaining two small lugs, which are likely to be the main terminal versus the small control (gate) lead going to the trigger circuit? • How would the gate connection be arranged so it can be wired with lighter conductors than the main power leads?

✅ Before You Answer

• Be sure you can point to which lead is the stud / mounting body and eliminate it as the gate • Among the two small terminals, choose the one that logically would carry control current only, not full load current • Confirm that your choice for the gate is consistent with typical stud-type SCR lead identification used in marine electrical diagrams
