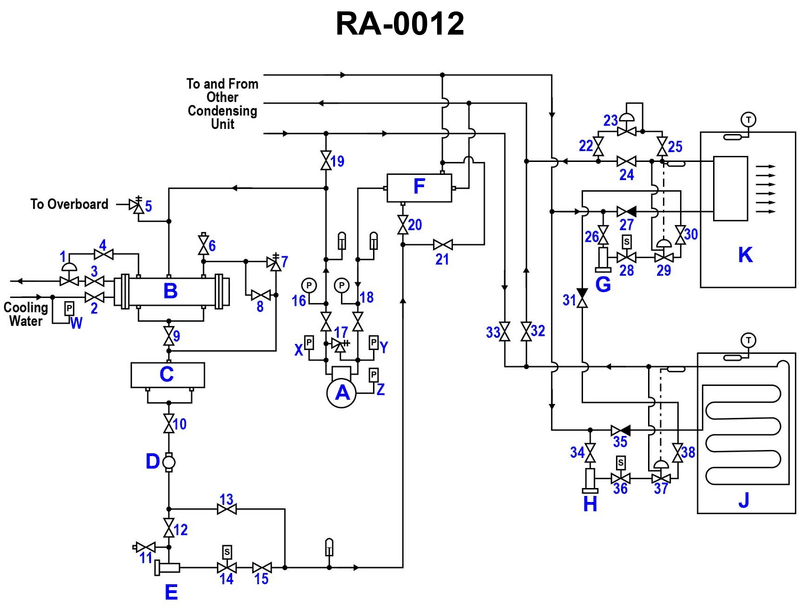

In the illustrated refrigeration system, what is the proper name for the component labeled "A"? Illustration RA- 0012

Back

Question 1 of 27070

In the illustrated refrigeration system, what is the proper name for the component labeled "A"? Illustration RA- 0012

If the question has a related picture, it will appear here.

🔍 Key Concepts

• Trace the flow of refrigerant through the system, especially the suction and discharge sides. • Identify what each main component in a basic refrigeration cycle does: compressor, condenser, receiver/accumulator, filter drier, evaporator. • Note the connections and gauges around label A and how they relate to suction or discharge pressure.

💭 Think About

• Follow the lines entering and leaving A: do they come from the low‑pressure side (evaporators) or the high‑pressure side (condenser)? • Look at nearby symbols X, Y, Z and the pressure gauges around A. What type of component usually has multiple service valves and pressure readings clustered around it? • Compare the shape and piping of A with the other labeled components (like B, F, G, J, K). Which part of the standard refrigeration cycle is located in that position?

✅ Before You Answer

• Verify whether A is on the low‑pressure suction line coming back from the evaporators or on the high‑pressure liquid line leaving the condenser. • Check if A appears to be an active mechanical device changing pressure/temperature, or a passive container for storing or cleaning refrigerant. • Confirm that A’s symbol and location match the expected position of your chosen component in a typical refrigeration flow diagram.

Question 1 of 27070

In the illustrated refrigeration system, what is the proper name for the component labeled "A"? Illustration RA- 0012

accumulator
