In illustration D051NG below what is...

Question 1 of 2707066636ee928f7522a1c51995e

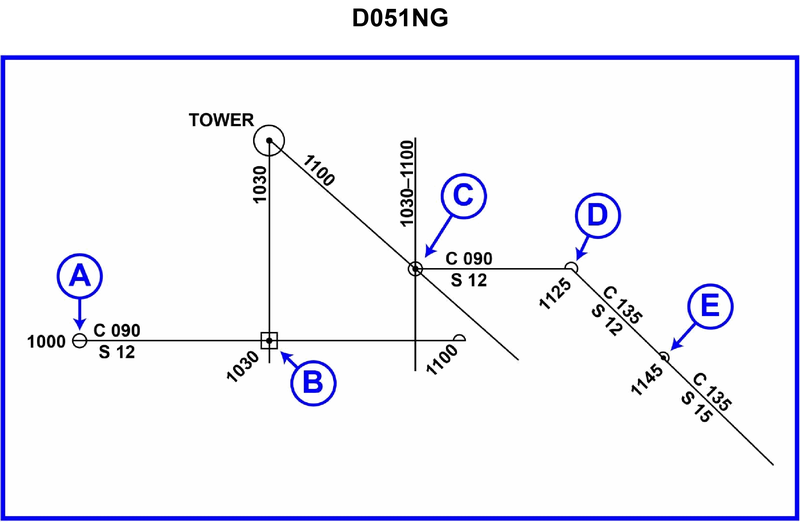

In illustration D051NG below what is indicated by the position labeled "C"?

Back

Question 1 of 27070

In illustration D051NG below what is indicated by the position labeled "C"?

No Illustration

This question does not have an illustration

🔍 Key Concepts

• Differences between DR (dead reckoning), EP (estimated position), and a fix on a piloting plot • How a running fix is constructed using two bearings to the same object at different times, with one line of position advanced • Standard chart symbols: open circle, square, and circle-with-dot, and what each usually represents on a USCG exam plotting sheet

💭 Think About

• Look closely at how the position at C was obtained: is it from advancing a line of position from an earlier time, or from intersecting fresh, simultaneous observations? • Compare the symbol used at C with the symbols at A, B, D, and E. Which one shows a pure DR track, which one shows an estimated position, and which ones come from observational lines of position? • On the track line near C, notice the time labels (1030–1100). What does that tell you about how this particular position was determined?

✅ Before You Answer

• Identify which symbol on the sheet represents a DR position and which represents an estimated position before choosing your answer • Confirm whether position C comes from simultaneous observations or from advancing a previous line of position to a later time • Verify that your choice matches both the symbol used at C and the construction method (how the lines and times are drawn)
