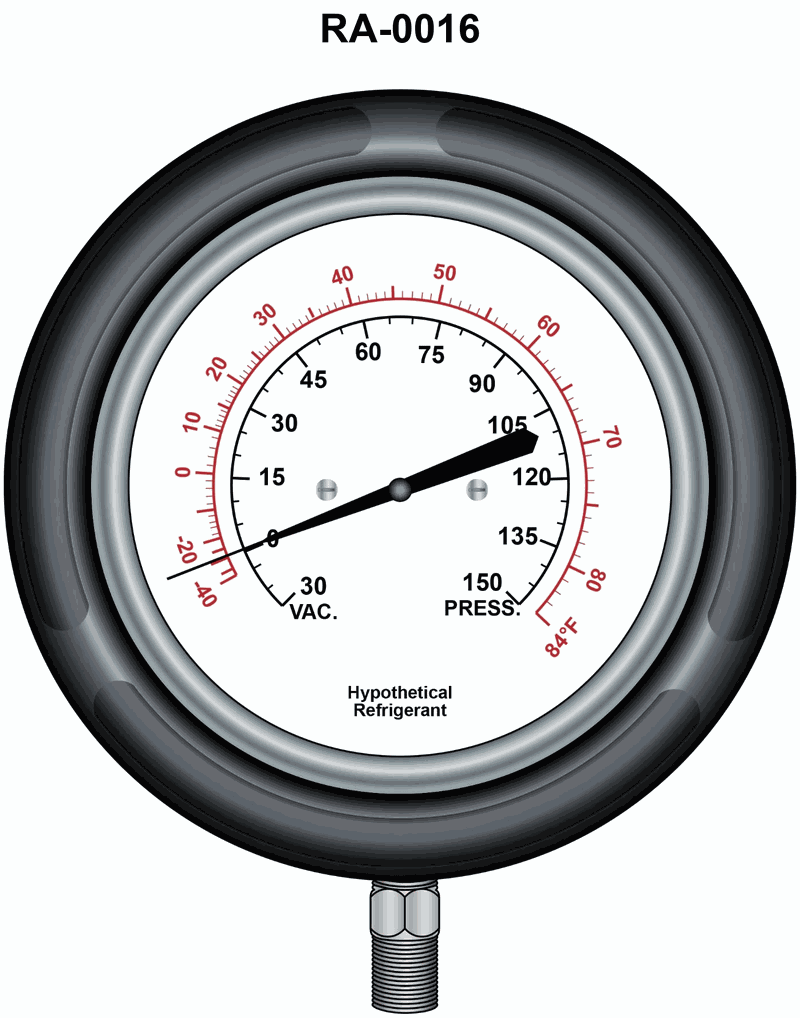

In addition to the indicated gauge pressure, what other information is presented on the compound gauge for the hypothetical refrigerant illustrated? Illustration GS-RA-16
