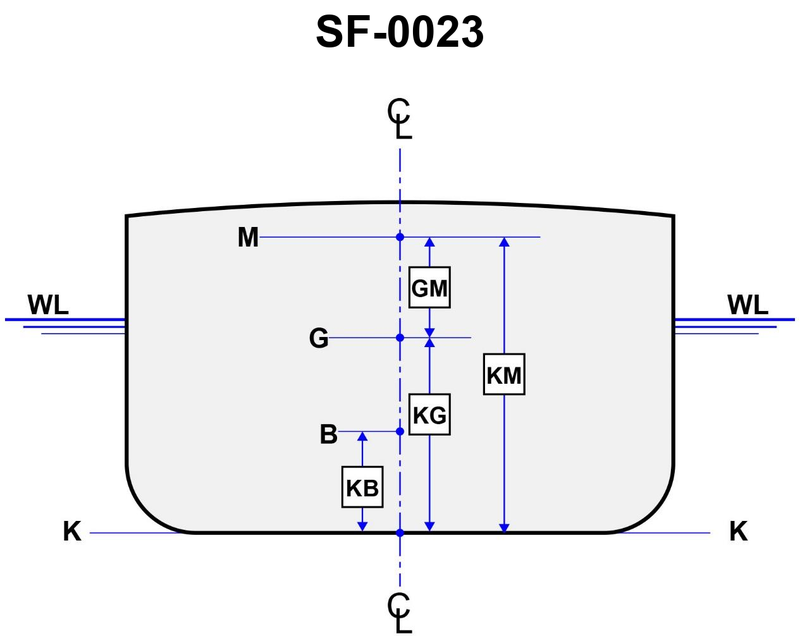

If weight is added at "K" to the ship shown in the illustration, __________. See illustration SF-0023.

Back

Question 1 of 20

5eccef9fbacbc34ba4d4697b

If weight is added at "K" to the ship shown in the illustration, __________. See illustration SF-0023.

No comments yet

Be the first to share your thoughts!

If the question has a related picture, it will appear here.

🔍 Key Concepts

• How the center of gravity (G) moves when weight is added high vs. low in the ship • Relationship between KG, KM, and GM (i.e., ( GM = KM - KG )) • What happens to center of buoyancy (B) when draft increases slightly from added weight

💭 Think About

• If you add weight right at the keel (K), is that weight higher, lower, or at the same level as the current G, and therefore will G move up or down? • When G moves, how does that affect GM using the formula ( GM = KM - KG )? Think about whether KG gets bigger or smaller. • Does simply adding weight at K directly push B up or down, or does B mainly depend on the underwater shape and draft?

✅ Before You Answer

• Be clear about which points are fixed to the hull (K, M) and which can move (G, B). • Verify whether adding weight low in the ship makes her more or less stable (i.e., does GM get larger or smaller?). • Confirm whether the option you choose matches both the motion of G and the expected change in stability (GM) when weight is added at the keel.

👋 Hi! I'm Genie, your AI study assistant. How can I help you with this question?

Quick actions

— No credit card needed

Question 1 of 20

If weight is added at "K" to the ship shown in the illustration, __________. See illustration SF-0023.

"B" will go down

"G" will rise

GM' will decrease

"G" will go down
