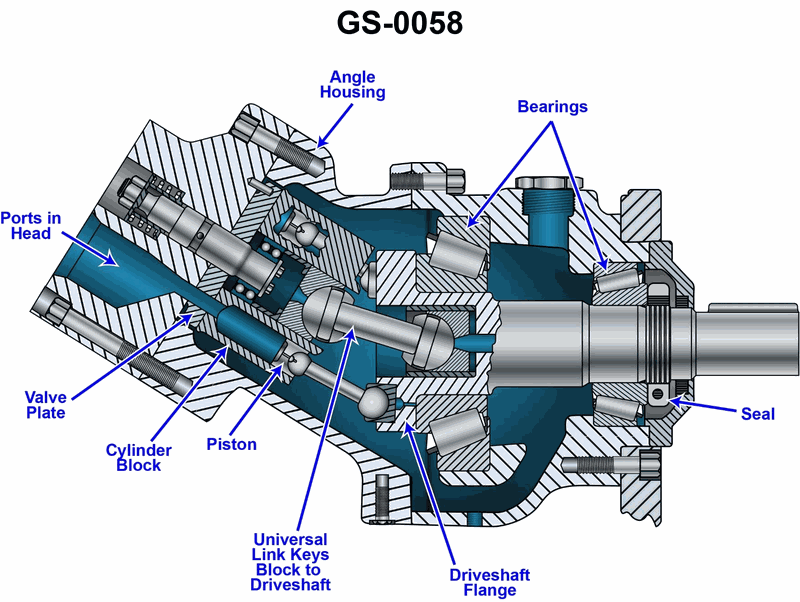

If the flow rate and pressurized oil from a variable capacity pump were supplied to the device illustrated, the __________. Illustration GS-0058

Back

Question 1 of 20

5eccef9cbacbc34ba4d459a5

If the flow rate and pressurized oil from a variable capacity pump were supplied to the device illustrated, the __________. Illustration GS-0058

No comments yet

Be the first to share your thoughts!

If the question has a related picture, it will appear here.

🔍 Key Concepts

• Identify the illustrated device (pump vs. motor) and how it converts hydraulic flow and pressure into mechanical output. • Relationship between flow rate and shaft speed in a hydraulic motor. • Relationship between pressure, torque, and horsepower in hydraulic systems: (HP = \frac{Torque \times RPM}{5252}).

💭 Think About

• Look at the angle housing, pistons, and driveshaft: is this component designed to send oil out, or to be driven by oil coming in? • If the pump feeding this device increases flow while holding pressure approximately constant, what happens to shaft RPM, torque, and therefore horsepower? • Consider which of the answer choices matches a situation where flow is the main variable but system pressure does not change very much.

✅ Before You Answer

• Be clear whether flow controls speed and pressure controls torque in a hydraulic motor. • Check which option suggests that all three (HP, torque, speed) move together vs. only one changing significantly. • Verify that your chosen option is consistent with the power formula: if torque stays about the same and RPM changes, what must happen to horsepower?

👋 Hi! I'm Genie, your AI study assistant. How can I help you with this question?

Quick actions

— No credit card needed

Question 1 of 20

If the flow rate and pressurized oil from a variable capacity pump were supplied to the device illustrated, the __________. Illustration GS-0058

speed would decrease, horsepower and torque would increase

horsepower, torque, and speed would increase proportionally

horsepower, torque, and speed would decrease proportionally

speed would increase, horsepower and torque would decrease
