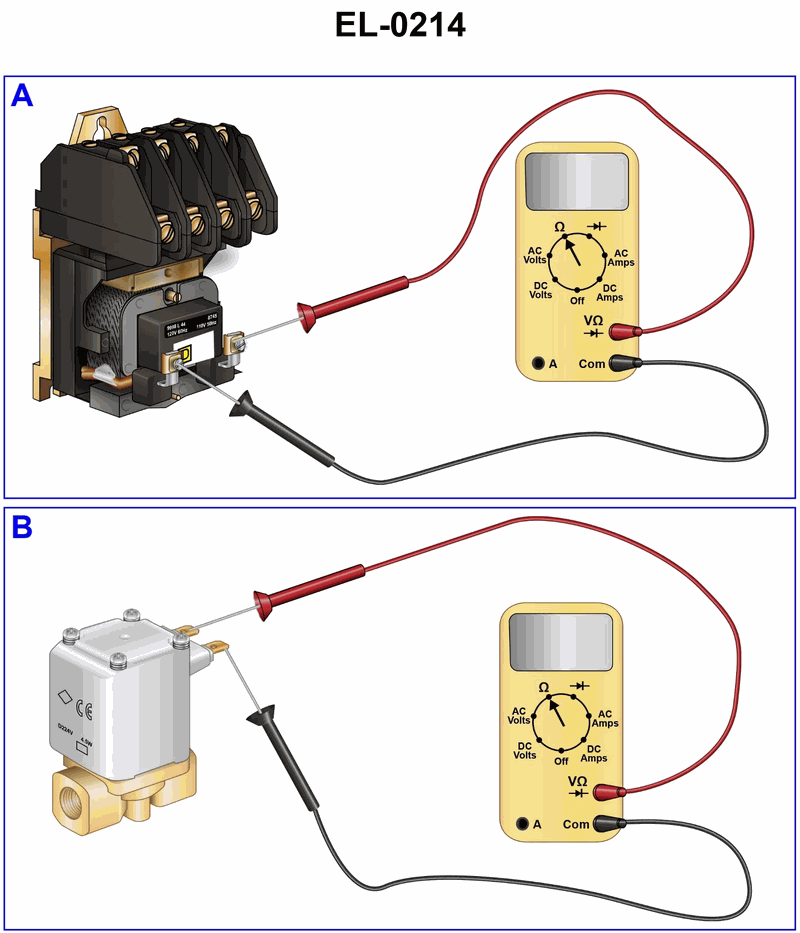

If a digital multimeter is set up as shown in figure "A" of the illustration to test an AC contactor coil, what would the display read if the coil is open-circuited? Illustration EL-0214

Back

Question 1 of 20

66636eed28f7522a1c51d4bd

If a digital multimeter is set up as shown in figure "A" of the illustration to test an AC contactor coil, what would the display read if the coil is open-circuited? Illustration EL-0214

No comments yet

Be the first to share your thoughts!

If the question has a related picture, it will appear here.

🔍 Key Concepts

• Ohms (Ω) setting on a digital multimeter and what it measures • Behavior of a meter when there is an open circuit versus a normal resistance • Difference between resistance readings and voltage readings on the same meter

💭 Think About

• Look closely at how the meter selector is set in figure A—what quantity is actually being measured? • If a coil is open-circuited, is there a complete path for current? How does a digital ohmmeter indicate that condition on its display? • Which of the answer choices looks like a normal coil resistance, and which choices indicate either a short circuit or no continuity at all?

✅ Before You Answer

• Verify that the meter in figure A is on the ohms (Ω) range, not a volts range • Recall what most digital meters display when the resistance is too high or infinite (no continuity) • Eliminate any choices that represent voltage instead of resistance, since the circuit is not energized in an ohms test

👋 Hi! I'm Genie, your AI study assistant. How can I help you with this question?

Quick actions

— No credit card needed

Question 1 of 20

If a digital multimeter is set up as shown in figure "A" of the illustration to test an AC contactor coil, what would the display read if the coil is open-circuited? Illustration EL-0214

0.03 ohms

22 ohms

OL ohms

110 V
