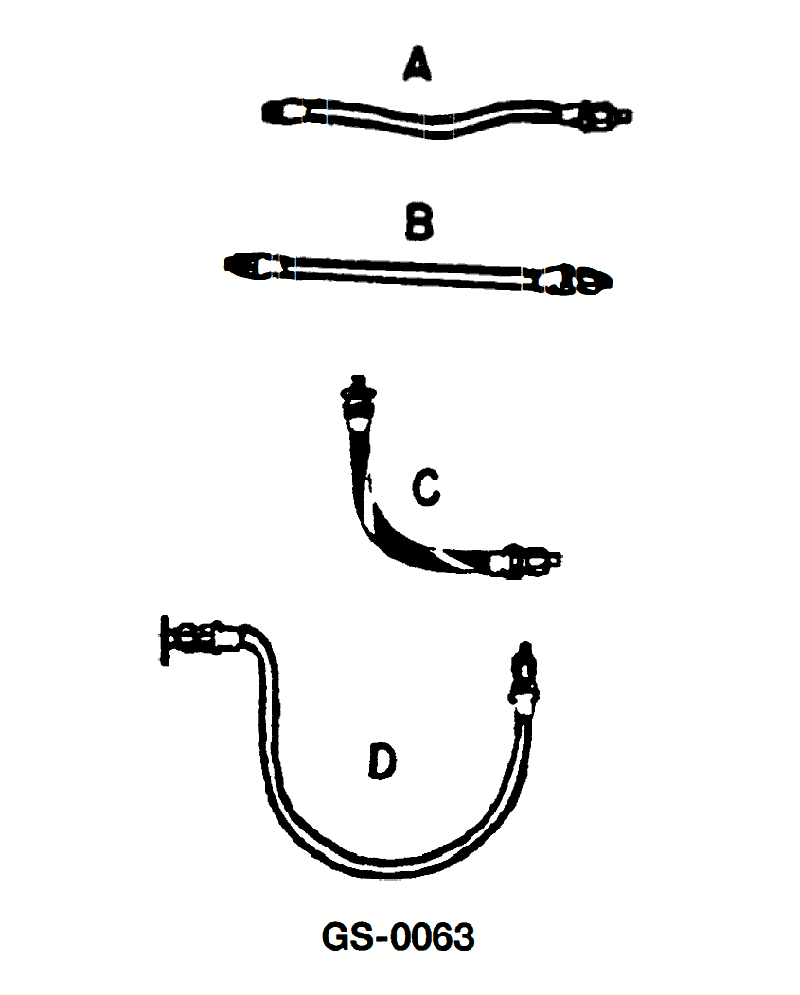

Figure "B" in the illustration is improperly installed. A restriction will develop in this hose __________. See illustration GS-0063.

Back

Question 1 of 20

5eccef9cbacbc34ba4d45967

Figure "B" in the illustration is improperly installed. A restriction will develop in this hose __________. See illustration GS-0063.

No comments yet

Be the first to share your thoughts!

If the question has a related picture, it will appear here.

🔍 Key Concepts

• Flexible hose under pressure tends to change length and move slightly • Hoses should not be installed pulled tight in a straight line between rigid connections • Internal reinforcement (wire braid) can cause twisting and kinking near one end when the hose is pressurized

💭 Think About

• Look at hose B: what will happen to a perfectly straight, tight hose when internal pressure increases and it tries to shorten or move? • If one end is more free to move than the other, which end is more likely to distort and restrict flow? • Compare B with C and D: why are C and D better able to absorb movement without creating a sharp kink right at a fitting?

✅ Before You Answer

• Identify which end of hose B appears more constrained by the attached piping and which end could bend or buckle • Decide whether the restriction would form upstream (ahead of flow) or downstream (trailing the flow) of the moving fluid • Mentally ‘pressurize’ the hose: imagine it trying to expand and shorten—where does the first sharp bend or kink logically appear?

👋 Hi! I'm Genie, your AI study assistant. How can I help you with this question?

Quick actions

— No credit card needed

Question 1 of 20

Figure "B" in the illustration is improperly installed. A restriction will develop in this hose __________. See illustration GS-0063.

at the right hand end, regardless of the direction of flow

at the left hand end, regardless of the direction of flow

ahead of the direction of flow

trailing the direction of flow
