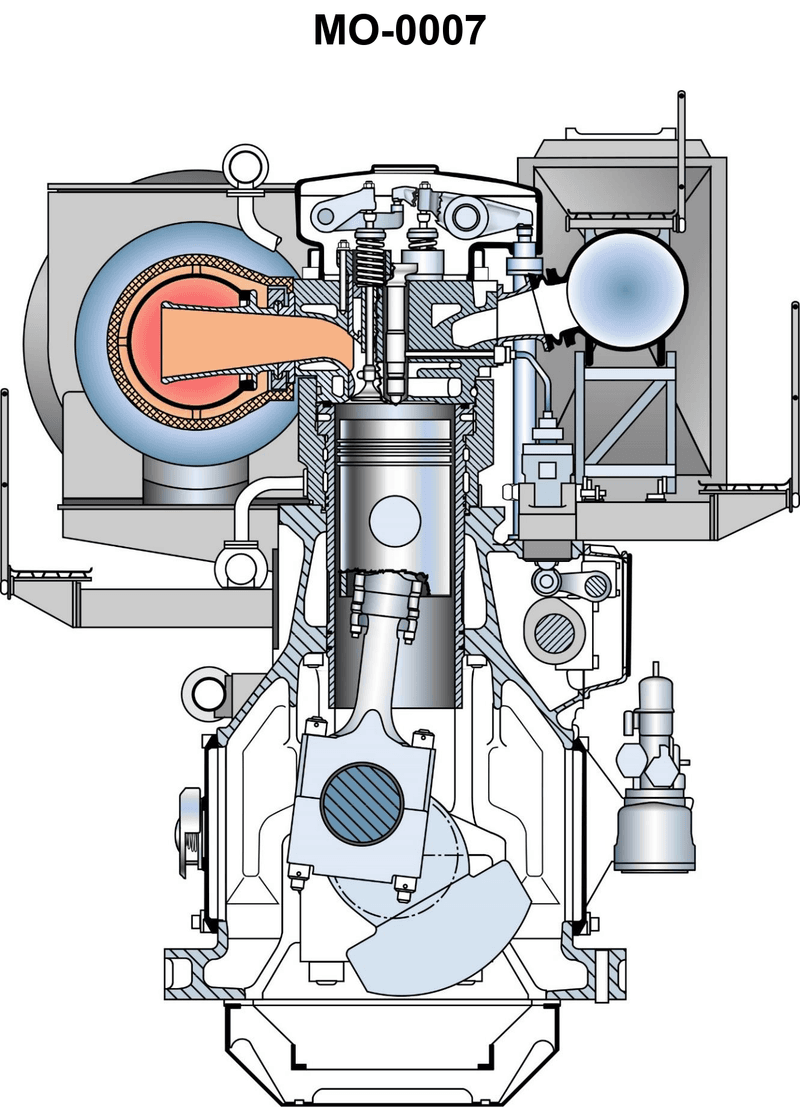

Each diesel engine cylinder shown in the illustration is equipped with a/an __________. See illustration MO-0007.

Back

Question 1 of 20

5eccefa2bacbc34ba4d477fb

Each diesel engine cylinder shown in the illustration is equipped with a/an __________. See illustration MO-0007.

No comments yet

Be the first to share your thoughts!

If the question has a related picture, it will appear here.

🔍 Key Concepts

• Unit injector vs. separate jerk pump plus injector – where is the pumping element located? • Common rail system – look for a high‑pressure manifold feeding multiple cylinders. • Marine boiler burner terminology like flame plate – which system uses that language, engines or boilers?

💭 Think About

• Look closely at the cylinder head area: do you see a single, tall assembly that both receives cam motion and delivers fuel directly into the combustion space, or do you see a separate pump with a high‑pressure line going to a nozzle? • Ask yourself whether the illustration shows any common high‑pressure fuel pipe feeding several cylinders, or only individual devices at each cylinder head. • Which option includes components (like a flame plate) that you would expect more on an oil burner for a boiler rather than on a diesel engine cylinder?.

✅ Before You Answer

• Verify whether there is a high‑pressure fuel line running from a separate pump body to the injector nozzle, or if the cam acts directly on the injector body in the head. • Check if there is a common high‑pressure rail or manifold anywhere in the drawing feeding the cylinder – if you don’t see one, be cautious with any answer mentioning it. • Eliminate any answers that include parts you would normally associate with boiler burners instead of diesel engine cylinder fuel injectors.

👋 Hi! I'm Genie, your AI study assistant. How can I help you with this question?

Quick actions

— No credit card needed

Question 1 of 20

Each diesel engine cylinder shown in the illustration is equipped with a/an __________. See illustration MO-0007.

unit injector

individual jerk pump and injector

fuel valve supplied from the common rail

fuel valve, spray valve, and flame plate
