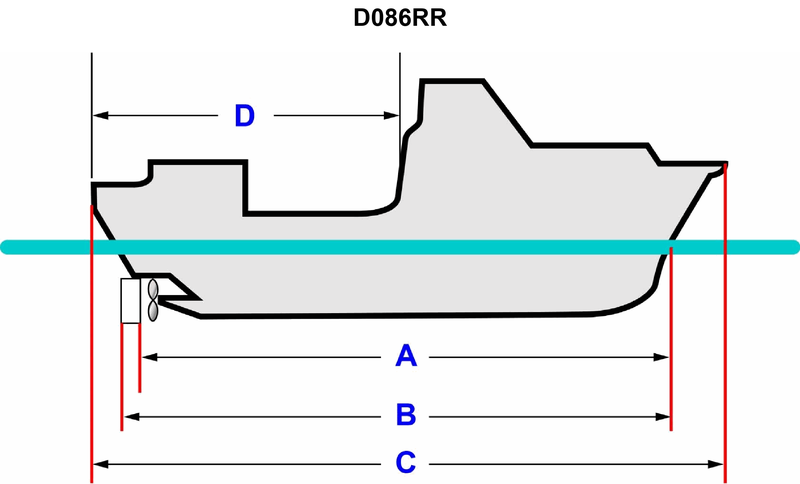

BOTH INTERNATIONAL & INLAND Which of the following in illustration D086RR below represents the length of a vessel as defined by the Rules?

Back

Question 1 of 27070

BOTH INTERNATIONAL & INLAND Which of the following in illustration D086RR below represents the length of a vessel as defined by the Rules?

If the question has a related picture, it will appear here.

🔍 Key Concepts

• Review Rule 3 – General Definitions in the Navigation Rules for how "length" is defined. • Think about overall length between the extreme forward and after points of the hull above the waterline, not just the part in the water. • Distinguish between "length overall" and measurements like length on waterline or between perpendiculars used in ship design.

💭 Think About

• Which arrow in the illustration stretches from the farthest forward point of the vessel’s hull to the farthest aft point of the hull, regardless of what is underwater? • Is any arrow starting or ending at a point that is not the extreme end of the vessel, such as at the rudder, propeller, or just at the waterline? • Compare the arrows A, B, C, and D: which one clearly ignores draft and underwater fittings and just measures the hull’s maximum fore‑and‑aft dimension?

✅ Before You Answer

• Verify which choice uses the two red vertical lines at the vessel’s extreme bow and stern as its endpoints. • Confirm that the length you pick does not stop at the rudder or propeller instead of the stern of the hull. • Make sure the arrow you select is not limited to the waterline only, but represents the full fore‑and‑aft length of the vessel.
