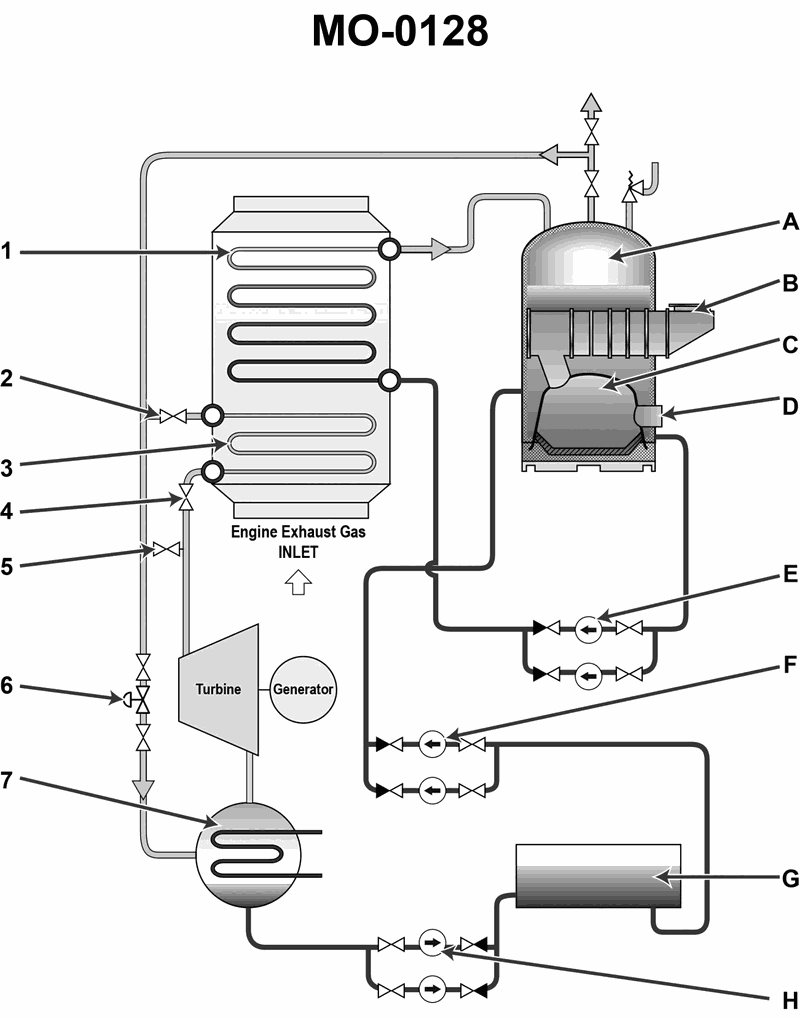

As shown in the illustration, the function of component "3" is to ________. Illustration MO-0128

generate saturated steam when the vessel is underway

condense excess steam produced in the boiler

generate superheated steam to operate the turbo-generator

preheat feedwater before entering the steam drum
