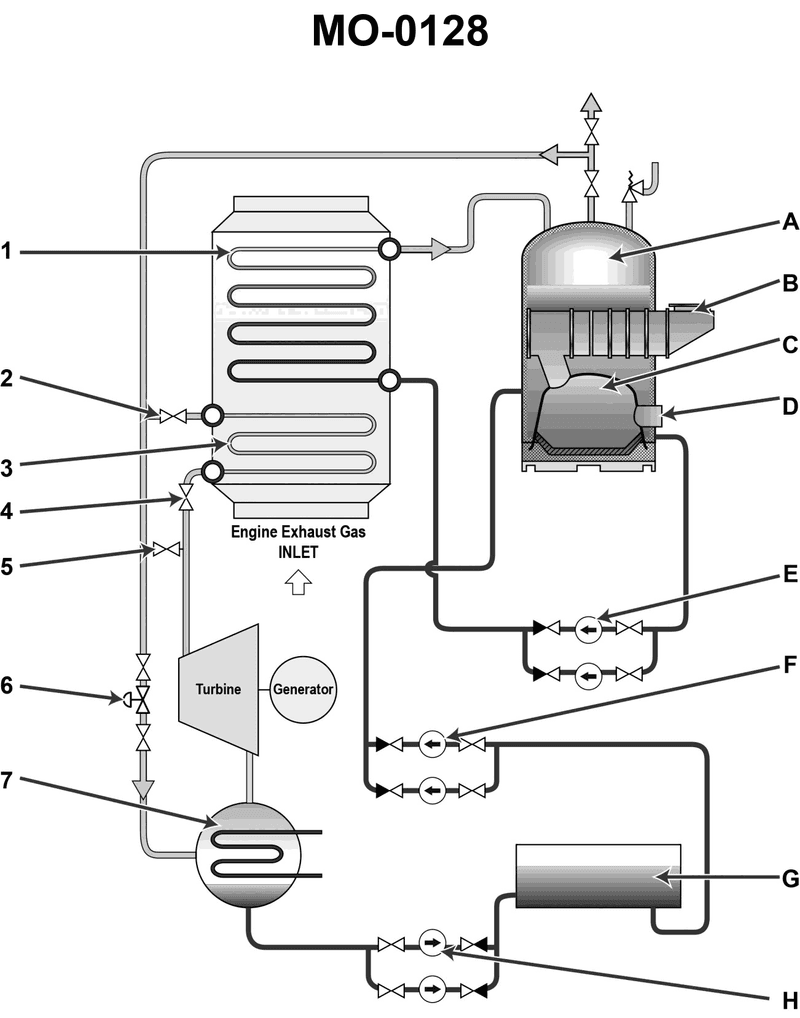

As shown in the illustration, the function of component "1" is to ________. See illustration MO-0128.
