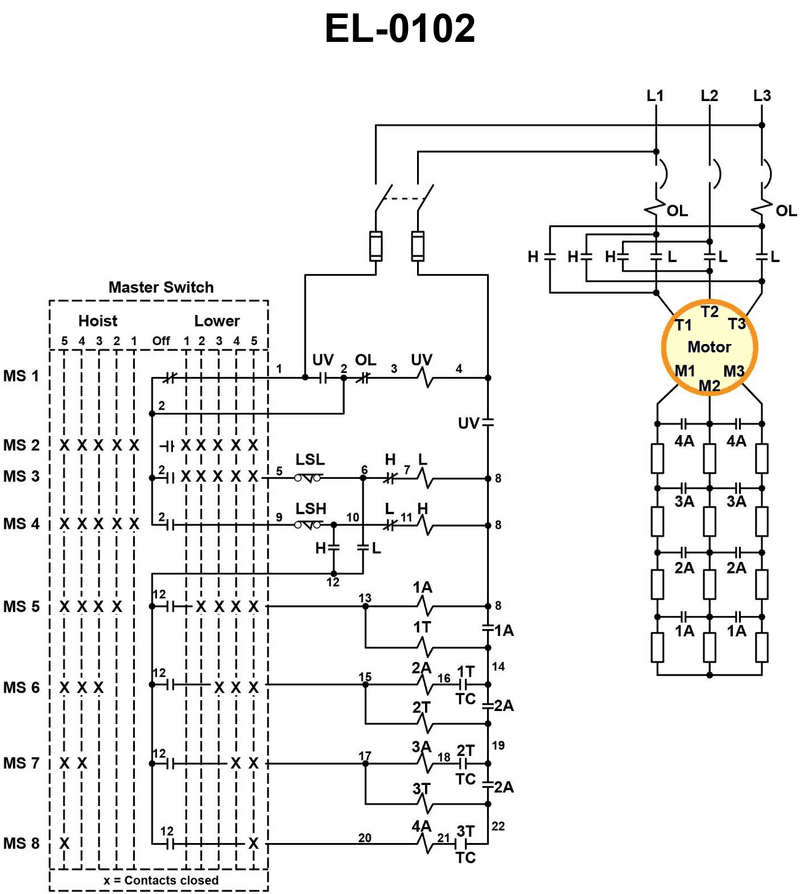

As shown in the illustration, how are the rotor windings (terminating as marked motor leads M1, M2, and M3) of the motor configured? Illustration EL-0102
