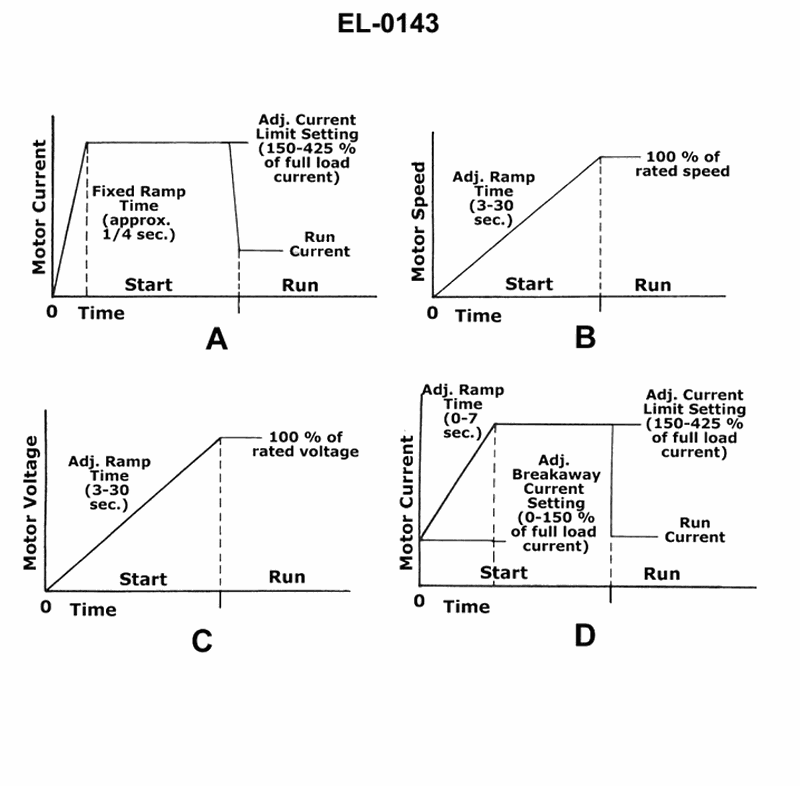

As shown in the illustrated solid-state stepless acceleration starting method graphs, which figure graphs a starting method that would require a tachometer input? See illustration EL-0143.

Back

Question 1 of 27070

Study area:

As shown in the illustrated solid-state stepless acceleration starting method graphs, which figure graphs a starting method that would require a tachometer input? See illustration EL-0143.

No Illustration

This question does not have an illustration

🔍 Key Concepts

• Open-loop vs closed-loop control in solid-state motor starters • Difference between controlling current, voltage, and speed during acceleration • What a tachometer feedback signal is actually measuring in a motor control system

💭 Think About

• Look at each graph and ask: which variable is being ramped and controlled during the start period? • Which type of control would need a direct measurement of shaft rotation to maintain the programmed ramp shape? • For current-limited or voltage-ramp starters, what internal quantities can the controller sense without any external mechanical sensor?

✅ Before You Answer

• Identify which figure uses motor speed vs time rather than current or voltage vs time • Recall that a tachometer provides a signal proportional to rotational speed, not current or voltage • Confirm that the chosen figure represents a closed-loop speed ramp, which cannot be done accurately without speed feedback
