As shown in the illustrated refrigeration...

Question 1 / 2066636eee28f7522a1c51f331

Question 1 of 2066636eee28f7522a1c51f331

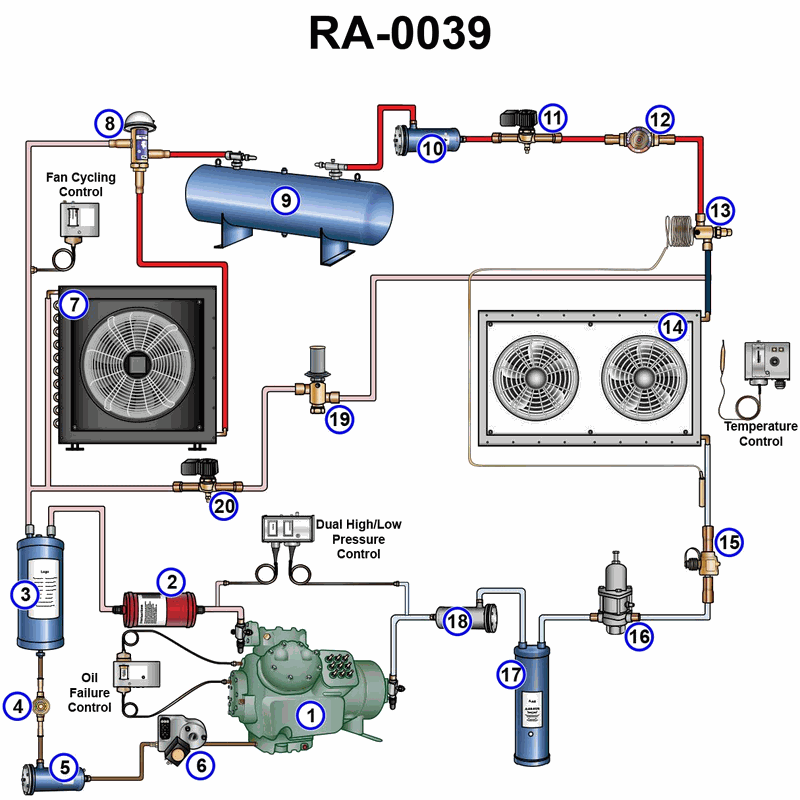

As shown in the illustrated refrigeration system piping schematic diagram with the various accessories and controls and equipped with an air-cooled condenser with high side pressure controls, what statement is true concerning the fan cycling control pressure switch? Illustration RA-0039

Back

Question 1 of 20

66636eee28f7522a1c51f331

No comments yet

Be the first to share your thoughts!

If the question has a related picture, it will appear here.

🔍 Key Concepts

• High-side (condensing) pressure control in an air‑cooled condenser • Effect of ambient air temperature on condenser pressure and required airflow • How a fan cycling pressure switch maintains minimum head pressure by starting/stopping or speeding/slowing condenser fans

💭 Think About

• When outside air temperature drops, what happens to condensing pressure if the condenser fan keeps moving maximum air? Does pressure go up or down? • Under which ambient condition do you need more condenser airflow, and under which do you need less, to keep head pressure in the proper range? • Look at the diagram: the fan‑cycling control is sensing high‑side pressure. If that sensed pressure falls below the setpoint, should it increase or reduce fan operation?

✅ Before You Answer

• Be sure you understand that the control switch is responding to high‑side pressure, not temperature directly. • Match each answer choice to whether fan operation would cause the head pressure to rise or fall under the stated ambient condition. • Eliminate any option where fan action would push the head pressure further away from the desired operating range instead of keeping it within limits.

👋 Hi! I'm Genie, your AI study assistant. How can I help you with this question?

Quick actions

— No credit card needed

Question 1 of 20

With a condenser fitted with multiple electric-motor driven fans, the number of fans in use would increase under low ambient temperature conditions.

With a condenser fitted with a single fan driven by a multi-speed electric motor, the fan speed would decrease under high ambient temperature conditions.

With a condenser fitted with a single fan driven by a multi-speed electric motor, the fan speed would decrease under low ambient temperature conditions.

Question 1 / 2066636eee28f7522a1c51f331

Question 1 of 2066636eee28f7522a1c51f331

Back

Question 1 of 20

66636eee28f7522a1c51f331

No comments yet

Be the first to share your thoughts!

If the question has a related picture, it will appear here.

🔍 Key Concepts

💭 Think About

✅ Before You Answer

👋 Hi! I'm Genie, your AI study assistant. How can I help you with this question?

Quick actions

— No credit card needed
