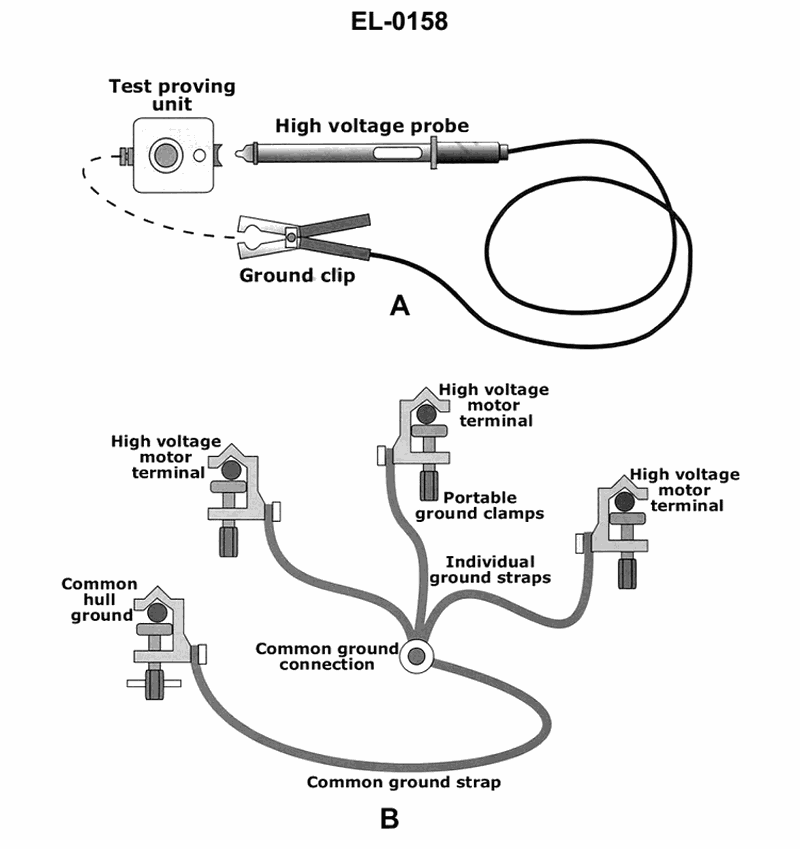

As shown in figure "B" of the illustration, after the high voltage circuit has been properly de-energized and isolated, and tested for the absence of voltage, what is the proper sequence for grounding high voltage motor terminals prior to commencing work? See illustration EL-0158.
