🔍 Key Concepts

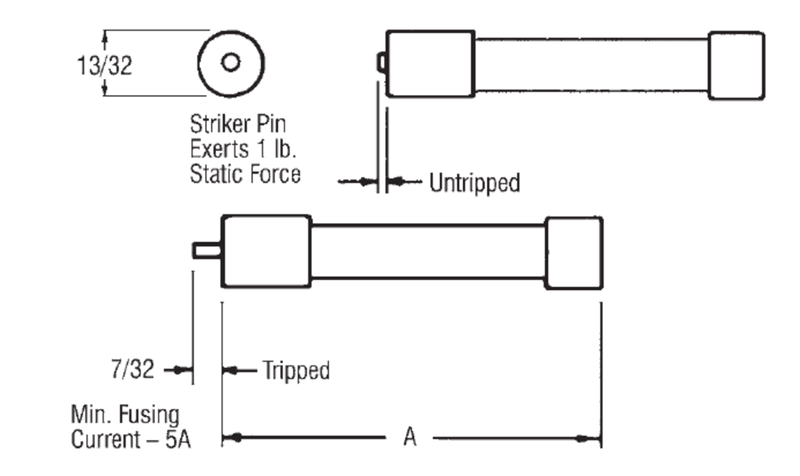

• Trigger-type fuses and how they operate compared to plain fuses
• What protections are already provided by a combined overload relay (overcurrent, single-phasing, ground fault, etc.)
• Which motor fault conditions are normally detected by relays versus those often handled by special fuses or sensing devices
💭 Think About
• Look at what the combined overload relay in the diagram is already designed to protect against. Which option simply repeats a function the relay already has?
• Ask yourself: when a trigger fuse operates (blows), is it usually because of a slow, long-term condition or a sudden, abnormal condition?
• For each choice (low voltage, single phasing, sustained overload, ground fault), think: is a fuse the typical primary sensor for this type of problem, or is another type of relay normally used?
✅ Before You Answer
• Verify in the figure what the overload relay is labeled to do (overcurrent, inverse-time, single-phasing, ground fault, etc.). Do not assign the fuse the same job twice.
• Check which of the listed conditions would actually cause fuse element heating and melting in a distinctive way, suitable to ‘trigger’ a trip mechanism.
• Confirm which protections are more commonly associated with voltage and current relays rather than with fuses, and eliminate those options.
