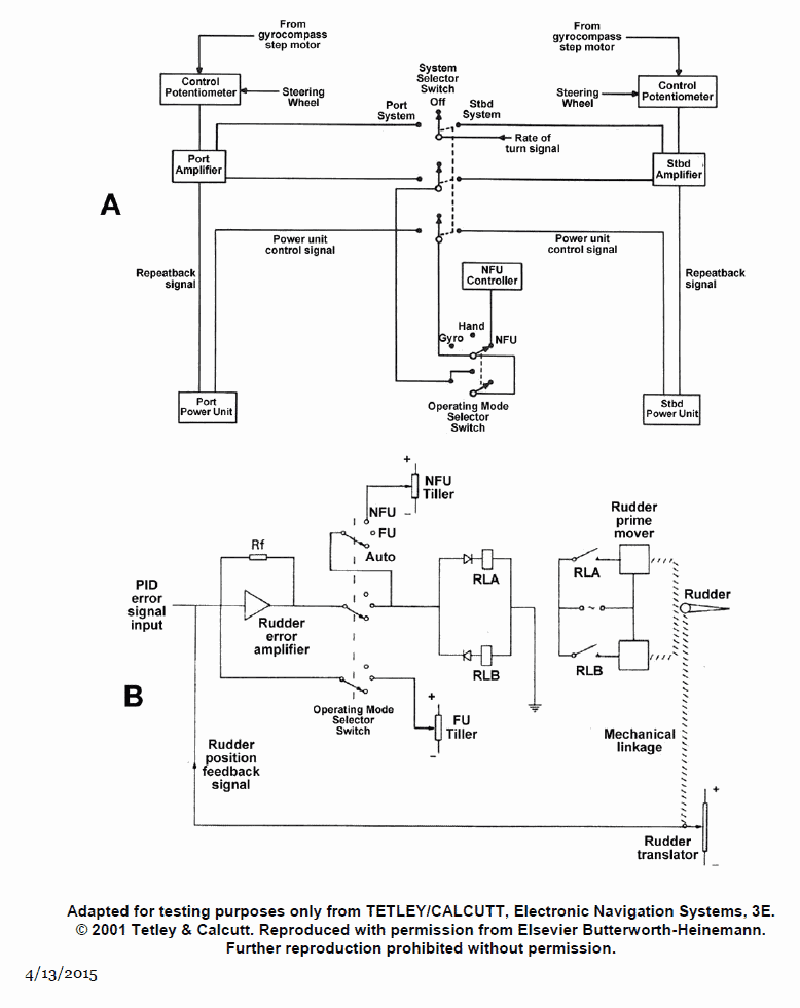

As shown in figure "A" of the illustration, the actual rudder angle repeatback signal originates at what device and is delivered to what other device? Illustration EL-0097

Back

Question 1 of 20

66636eed28f7522a1c51dab5

As shown in figure "A" of the illustration, the actual rudder angle repeatback signal originates at what device and is delivered to what other device? Illustration EL-0097

No comments yet

Be the first to share your thoughts!

If the question has a related picture, it will appear here.

🔍 Key Concepts

• Repeatback (feedback) signal in an automatic steering system • Relationship between power unit, amplifier, and control potentiometer in figure A • Direction of signal flow as shown by the line labeled Repeatback signal

💭 Think About

• On figure A, carefully trace the line actually labeled Repeatback signal: where does that line physically start, and which box does it enter last? • In a follow‑up steering system, which device senses the actual rudder movement, and which device must receive that information so the wheel order and rudder position can be compared? • Look at the separate line for the power unit control signal – how is that direction of flow different from the repeatback signal line?

✅ Before You Answer

• Verify which box the repeatback signal line emerges from (look for where the line leaves the symbol boundary). • Verify which box the repeatback signal line finally enters (not the one it just passes by near). • Distinguish between the power unit control signal (command to move the rudder) and the repeatback signal (actual rudder position coming back) before choosing your option.

👋 Hi! I'm Genie, your AI study assistant. How can I help you with this question?

Quick actions

— No credit card needed

Question 1 of 20

As shown in figure "A" of the illustration, the actual rudder angle repeatback signal originates at what device and is delivered to what other device? Illustration EL-0097

originates at the amplifier and delivered to the control potentiometer

originates at the power unit and delivered to the amplifier

originates at the power unit and delivered to the control potentiometer

originates at the amplifier and delivered to the power unit
