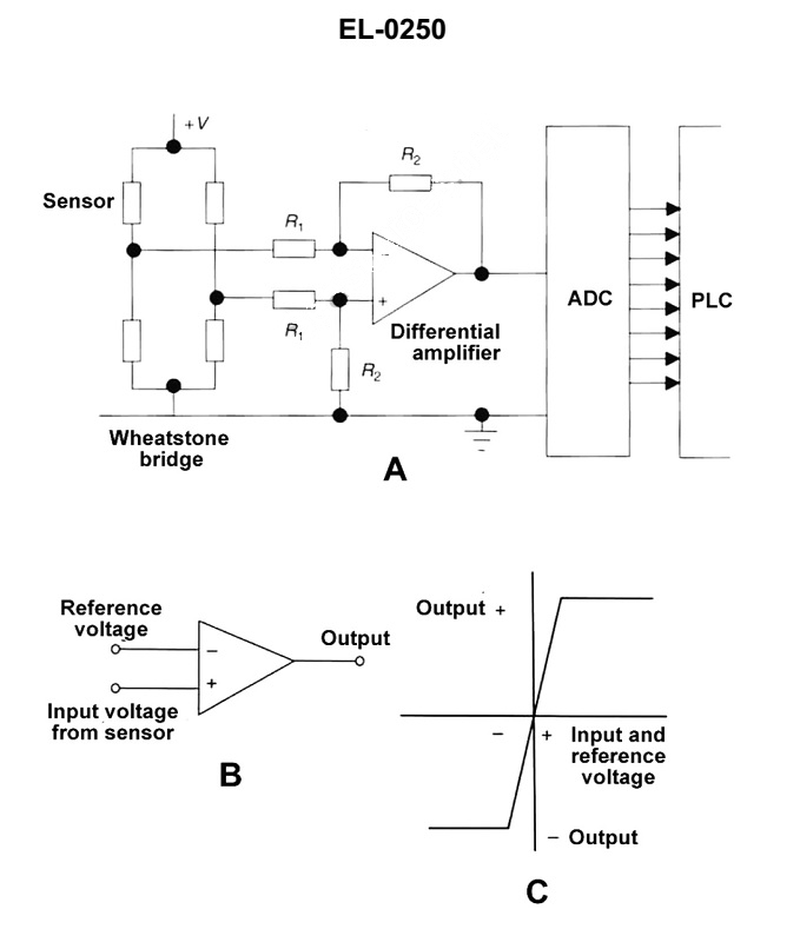

As shown in figure "A" of the illustration, concerning the signal conditioning circuit for programmable logic controller as illustrated, which statement is true? See illustration EL-0250.
A
If the sensor input voltage signal delivered to the inverting input is more positive than the reference input signal voltage signal delivered to the non-inverting input, the amplifier output voltage will be positive.
B
If the sensor input voltage signal delivered to the inverting input is more positive than the reference input signal voltage signal delivered to the non-inverting input, the amplifier output voltage will be negative.
C
If the sensor input voltage signal delivered to the non-inverting input is more positive than the reference input signal voltage signal delivered to the inverting input, the amplifier output voltage will be positive.
D
If the sensor input voltage signal delivered to the non-inverting input is more positive than the reference input signal voltage signal delivered to the inverting input, the amplifier output voltage will be negative.
