Question 1 of 270705eccefa0bacbc34ba4d47076

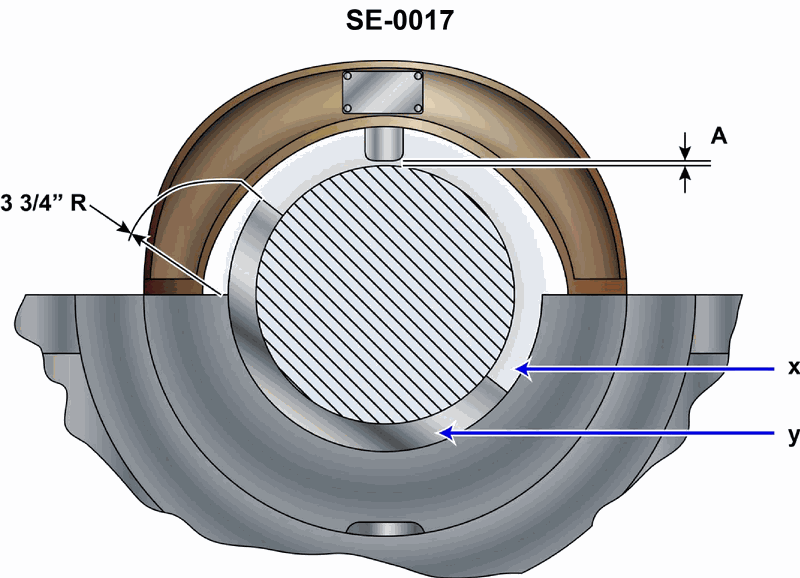

After one year of operating the bearing shown in the illustration, the reading obtained at point "A" would always be equal to the __________. See illustration SE-0017.

Question 1 of 27070

Q

After one year of operating the bearing shown in the illustration, the reading obtained at point "A" would always be equal to the __________. See illustration SE-0017.

No Illustration

This question does not have an illustration

🔍 Key Concepts

• Bridge gage reading on a main bearing and what the number stamped on the bearing cap represents when the bearing is new • Difference between designed oil clearance and bearing wear over time in a journal bearing • How the distance at point "A" in the illustration will change as the bearing shell wears during service

💭 Think About

• When the bearing is brand new, what does the stamped bridge gage value correspond to: just the metal dimensions, or the operating oil clearance built into the design? • As the bearing wears, does point "A" get farther from the shaft center, closer, or stay the same—and how does that change the bridge gage reading compared with the stamped (original) value? • If the clearance increases due to wear, would the new reading at "A" be equal to the original stamped reading, the designed clearance only, or the original reading plus something extra?

✅ Before You Answer

• Be clear on whether the stamped bridge gage reading already includes the designed oil clearance when the bearing is new • Think about whether bearing wear increases the distance measured at point "A" or only changes the oil-film shape • Confirm whether the reading after service should be the original (stamped) value by itself or that value plus some additional amount due to wear
