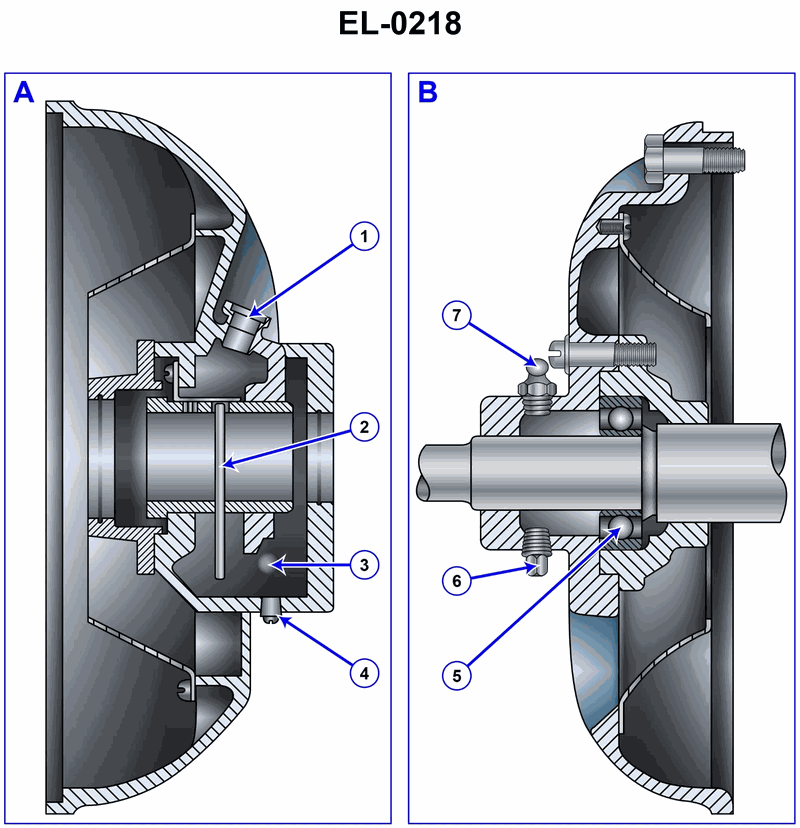

After draining the oil and flushing out the electric motor bearing as shown in figure "A" of the illustration, when adding clean oil, after reinstalling the drain plug, to what level should the oil be brought up to for optimal performance? See illustration EL-0218.

Back

Question 1 of 20

5eccefa4bacbc34ba4d484da

No comments yet

Be the first to share your thoughts!

If the question has a related picture, it will appear here.

🔍 Key Concepts

• Electric motor bearing oil reservoirs and how oil level affects lubrication vs. churning • Typical design goal: oil level around the shaft centerline / bottom of bearing so the bearing is supplied but not flooded • Using the illustration to see where item #1 and item #3 sit relative to the shaft and the bearing housing

💭 Think About

• Look at where the shaft centerline lies in relation to items #1 and #3. Which option would have the oil just high enough to wet the bearing without completely submerging and churning around the shaft? • If you filled to each of the listed levels, what would happen to heat generation, leakage, and the bearing’s ability to pick up oil? Which level seems like a practical manufacturer’s recommended level? • Compare this to what you know about oil-bath lubrication of sleeve or roller bearings: is the bearing supposed to be fully submerged in oil, or only partially dipped?

✅ Before You Answer

• Identify clearly whether item #1 is a fill/vent plug or an actual level indicator in figure A • Note the vertical position of item #3 relative to the shaft centerline and the bearing surfaces • Eliminate choices that would leave the bearing almost dry or that would flood the shaft and cause excessive churning

👋 Hi! I'm Genie, your AI study assistant. How can I help you with this question?

Quick actions

— No credit card needed

Question 1 of 20

To the bottom of item #1.

To the top of item #1.

To the top of the motor shaft.

To the midpoint of item #3.
