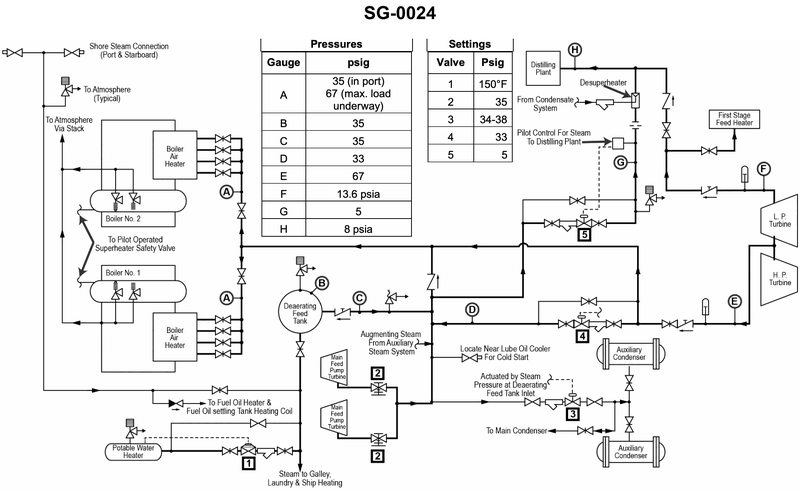

According to the illustrated diagram, what is the normal source of heat for the first stage feed heater and the distilling plants when the vessel is underway under full power? Illustration SG-0024

Back

Question 1 of 20

66636ef128f7522a1c520eb9

According to the illustrated diagram, what is the normal source of heat for the first stage feed heater and the distilling plants when the vessel is underway under full power? Illustration SG-0024

No comments yet

Be the first to share your thoughts!

If the question has a related picture, it will appear here.

🔍 Key Concepts

• Trace the steam lines on SG-0024 from the low‑ and high‑pressure turbines to the first stage feed heater and distilling plant. • Compare in‑port steam sources (such as shore steam and auxiliary systems) with normal underway/full‑power steam sources. • Note how the diagram labels different steam extraction points (e.g., turbine bleed steam at various pressures) and which letter actually feeds those components.

💭 Think About

• On the diagram, which lettered steam line physically connects to both the first stage feed heater and the distilling plant when the ship is underway? • Does the first stage feed heater and distilling plant receive steam from exhaust of a small turbine, from a tank, or from a bleed point on a main turbine? • How does the operating condition "underway under full power" change which valve lineup is used compared with in‑port operation?.

✅ Before You Answer

• Verify which labeled line (A, B, C, D, etc.) is shown as the primary steam source to the first stage feed heater and distilling plant, not just an auxiliary or cold‑start source. • Confirm that this steam source comes from a main turbine bleed/extraction line rather than from the deaerating feed tank or a small turbine exhaust. • Make sure the source you pick matches the question’s condition: vessel underway under full power, not in‑port or low‑load operation.

👋 Hi! I'm Genie, your AI study assistant. How can I help you with this question?

Quick actions

— No credit card needed

Question 1 of 20

According to the illustrated diagram, what is the normal source of heat for the first stage feed heater and the distilling plants when the vessel is underway under full power? Illustration SG-0024

Dearating feed tank.

Main feed pump drive turbine exhaust.

Intermediate pressure bleed steam.

Low pressure bleed steam.
