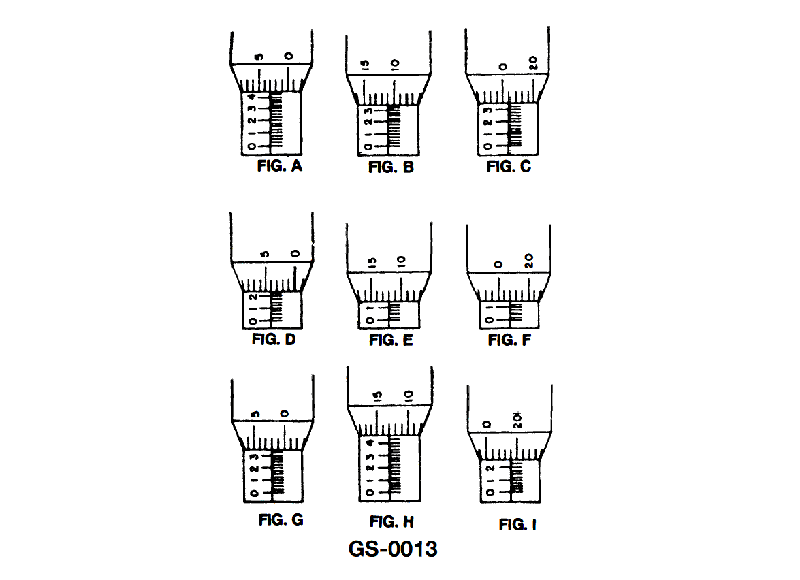

A micrometer scale reading is indicated as 0.438 inches and is represented in the illustration by __________. See illustration GS-0013.

Back

Question 1 of 20

5eccef9bbacbc34ba4d4525a

A micrometer scale reading is indicated as 0.438 inches and is represented in the illustration by __________. See illustration GS-0013.

No comments yet

Be the first to share your thoughts!

If the question has a related picture, it will appear here.

🔍 Key Concepts

• Micrometer structure: The reading is the sum of the sleeve (barrel) reading plus the thimble reading. • Inch micrometer graduations: On a standard inch micrometer, each numbered line on the sleeve is 0.100", and each short line is 0.025". • Thimble scale: Each division on the rotating thimble usually equals 0.001"; 25 divisions make one full 0.025" turn.

💭 Think About

• First, figure out what combination of 0.100", 0.025", and 0.001" marks will add up to 0.438". • Then, for each figure, read the sleeve value just to the left of the thimble edge, and add the thimble value that lines up with the horizontal reference line. • Compare your calculated value for each candidate figure to 0.438" and eliminate those that are obviously too small or too large.

✅ Before You Answer

• Be sure the sleeve reading includes all visible 0.100" and 0.025" marks to the left of the thimble edge. • Confirm which thimble graduation line exactly coincides with the sleeve’s reference line; multiply that number by 0.001". • Double‑check that your final sum is 0.438", not 0.428" or 0.448"—small mistakes of 0.010" are easy to make.

👋 Hi! I'm Genie, your AI study assistant. How can I help you with this question?

Quick actions

— No credit card needed

Question 1 of 20

A micrometer scale reading is indicated as 0.438 inches and is represented in the illustration by __________. See illustration GS-0013.

Figure A

Figure C

Figure G

Figure H
