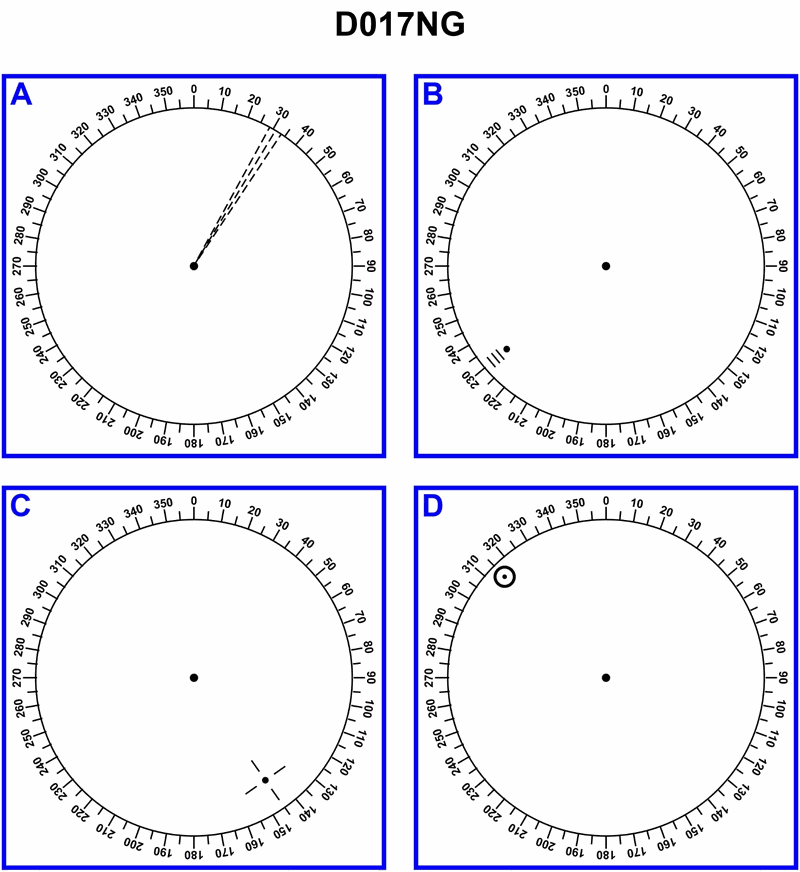

You are radar scanning for a buoy fitted with a racon. In illustration D017NG below, which radar screen represents the presentation you should expect on the PPI?
