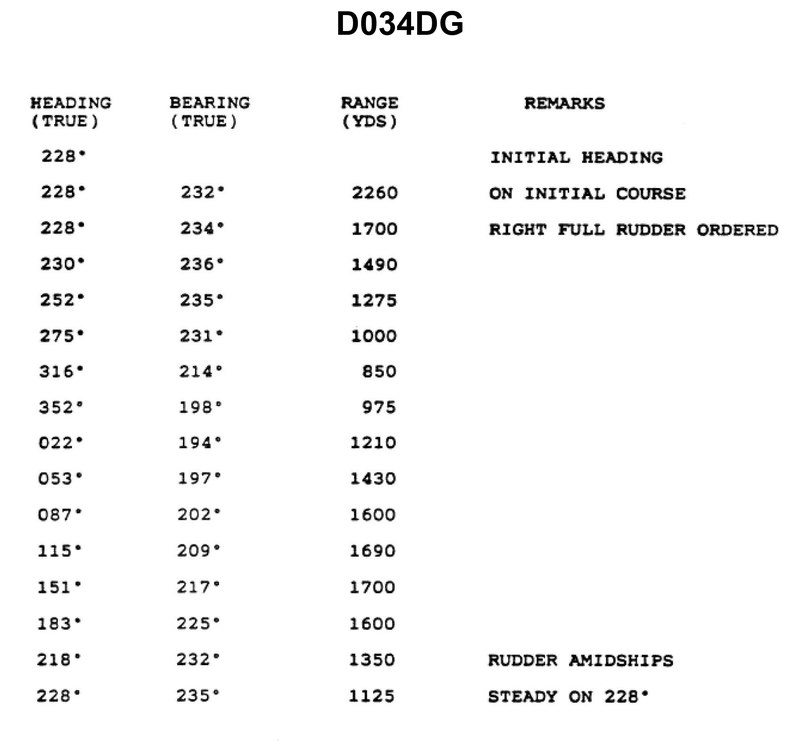

You are conducting trials to determine the maneuvering characteristics of your vessel. While making a turn, you take ranges and bearings of an isolated light with the results as shown. Based on this information, what is the advance for a turn of 75?? ILLUSTRATION D034DG

Back

Question 1 of 20

66636ee728f7522a1c5177c3

No comments yet

Be the first to share your thoughts!

If the question has a related picture, it will appear here.

🔍 Key Concepts

• Definition of advance during a turning circle test (distance gained in the original direction from the point where rudder is put over until a specified change of heading is reached). • Identifying from the table the exact line where right full rudder is ordered and the headings that bracket a 75° change of heading from the original course. • Using ranges and bearings of a fixed light to plot successive vessel positions and then measuring distance along the original course line to the interpolated 75°-heading position.

💭 Think About

• From the initial heading of 228°, what new heading corresponds to a 75° change to starboard, and between which two recorded headings does that fall? • When you plot the two positions on either side of that heading, how can you interpolate to find the approximate position at exactly that heading before measuring advance? • Are you measuring from the correct starting point (when the rudder was ordered), and only the distance in the original course direction, not along the curved track?.

✅ Before You Answer

• Be sure you use the position at RIGHT FULL RUDDER ORDERED as the starting point for advance, not the earlier point "ON INITIAL COURSE". • Confirm that your 75°-change heading lies between two recorded headings and interpolate between their plotted positions before measuring. • Measure the final distance parallel to the original course line (not along the arc of the turn) and convert your measurement to yards to compare with the answer choices.

👋 Hi! I'm Genie, your AI study assistant. How can I help you with this question?

Quick actions

— No credit card needed

Question 1 of 20

825 yards (754 meters)

860 yards (774 meters)

910 yards (819 meters)

955 yards (860 meters)
