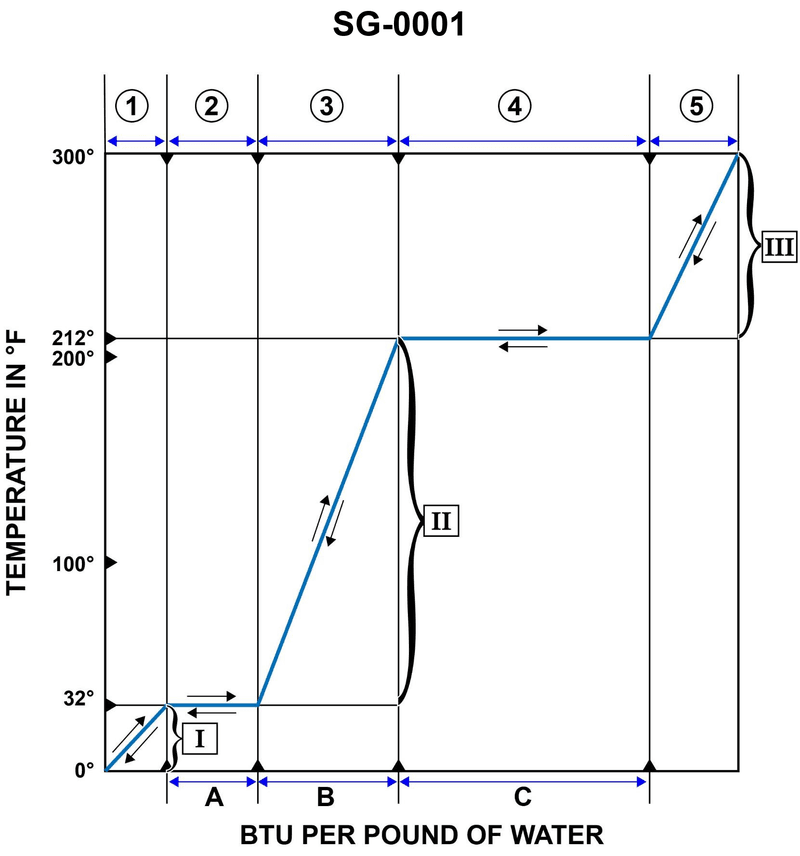

With an increase in the saturation pressure of a fluid, the value represented by line "5" on the graph will __________. Illustration SG-0001
