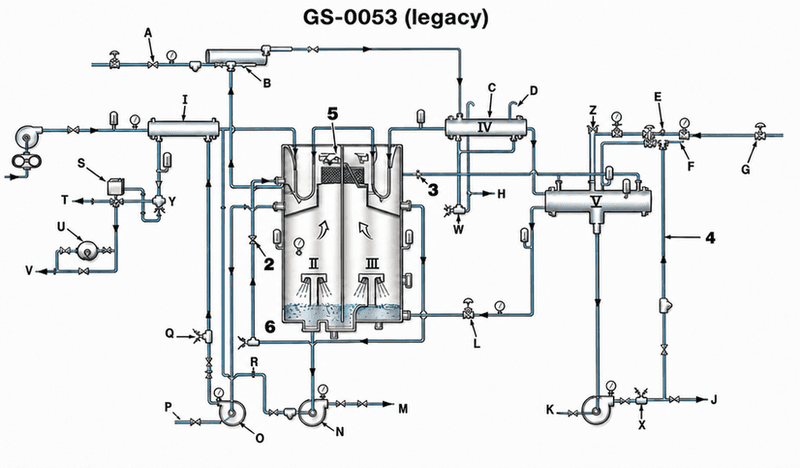

While the illustrated system is operated using the steam supply through "OR4" the strainer "MD9" becomes fouled, this will result in __________. Illustration GS-0053
