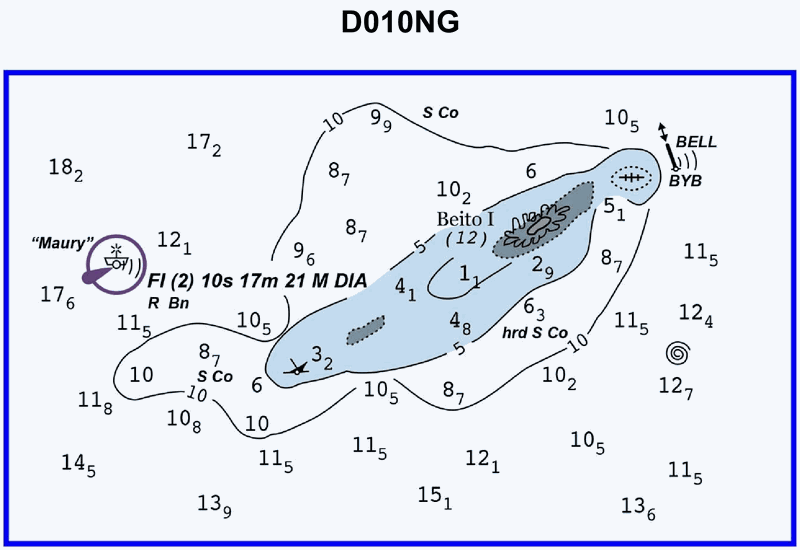

Which statement concerning the chartlet seen in illustration D010NG below is TRUE? (Soundings and heights are in meters)

Back

Question 1 of 20

66636ee928f7522a1c51a15d

Which statement concerning the chartlet seen in illustration D010NG below is TRUE? (Soundings and heights are in meters)

No comments yet

Be the first to share your thoughts!

If the question has a related picture, it will appear here.

🔍 Key Concepts

• Interpret how a light’s characteristics are written, especially Fl (2) 10s 17m 21M (what is height vs range vs period?). • Use Chart No. 1 bottom-type abbreviations to decode symbols like S Co and hrd S Co. • Understand common chart symbols near islands for eddies/overfalls and for depth contours such as the 5‑meter line.

💭 Think About

• For choice A, which number on the light description actually tells you how far away the light can be seen, and what do the other numbers mean? • For choices B and C, compare the exact wording in the answer (e.g., “soft coral” or “dangerous eddy”) to the exact chart abbreviations and symbols shown. Do they match perfectly, or is there a subtle difference? • For choice D, carefully trace the 5‑meter contour west of Beito Island and read every sounding inside it. Do you see a depth that matches the description, or something different (such as a height on land)?

✅ Before You Answer

• Confirm from light characteristics that you are not confusing height in meters with range in miles. • Verify from Chart No. 1 what S Co actually stands for, and whether it really means soft coral. • Check that any “eddy” symbol is actually labeled or indicated as dangerous, not just a current feature, and that any “12” you see is a depth, not a height on land.

👋 Hi! I'm Genie, your AI study assistant. How can I help you with this question?

Quick actions

— No credit card needed

Question 1 of 20

Which statement concerning the chartlet seen in illustration D010NG below is TRUE? (Soundings and heights are in meters)

Maury lightship is visible for 17 miles.

The bottom to the south-southeast of the lightship is soft coral.

There is a dangerous eddy southeast of Beito Island.

There is a 12-meter-deep hole west of Beito Island and inside the 5-meter line.
