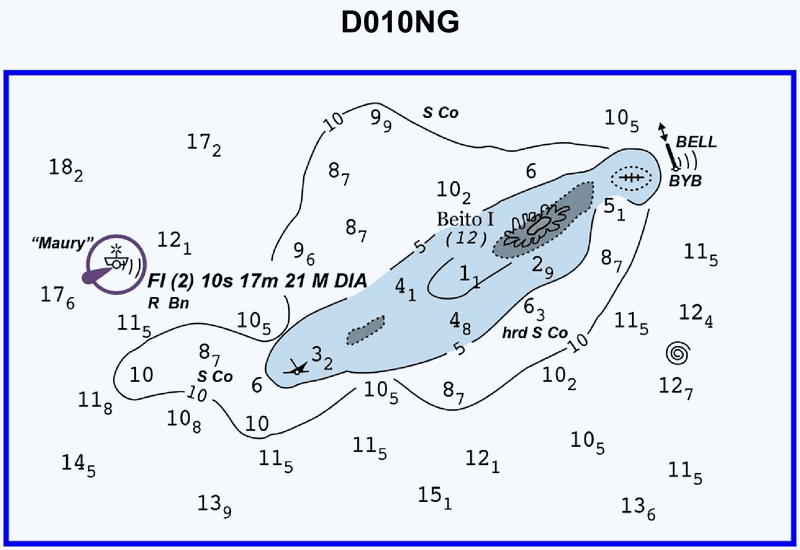

Which statement concerning the chartlet in illustration D010NG below is true? (Soundings and heights are in meters)
