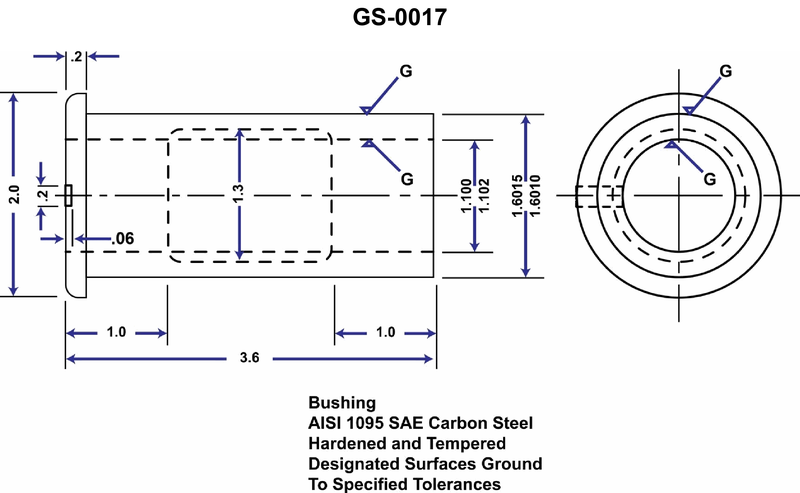

Which of the tolerances listed is allowed on the outside diameter of the bushing illustrated? Illustration GS- 0017

Back

Question 1 of 20

5eccef9abacbc34ba4d4507d

Which of the tolerances listed is allowed on the outside diameter of the bushing illustrated? Illustration GS- 0017

No comments yet

Be the first to share your thoughts!

If the question has a related picture, it will appear here.

🔍 Key Concepts

• Tolerance on a machining drawing is the difference between the upper and lower limit dimensions. • On this bushing drawing, the outside diameter is given with two limit values stacked one above the other. • Compare the outside diameter limits with the inside diameter limits to understand how small a tolerance can reasonably be.

💭 Think About

• Which dimension on the right‑hand view represents the outside diameter of the bushing, and what are its two limit values? • If you subtract the smaller outside diameter limit from the larger outside diameter limit, what numerical value do you get? • Look at choice D: is that a tolerance or is it one of the limit dimensions itself?

✅ Before You Answer

• Identify the correct outside diameter limits (not the inside diameter) before doing any math. • Compute tolerance = larger limit − smaller limit using the values shown for the outside diameter. • Confirm that your result matches one of the listed choices that is expressed as a tolerance value, not as a basic dimension.

👋 Hi! I'm Genie, your AI study assistant. How can I help you with this question?

Quick actions

— No credit card needed

Question 1 of 20

Which of the tolerances listed is allowed on the outside diameter of the bushing illustrated? Illustration GS- 0017

0.0005 inch

0.002 inch

0.060 inch

1.6015 inches
