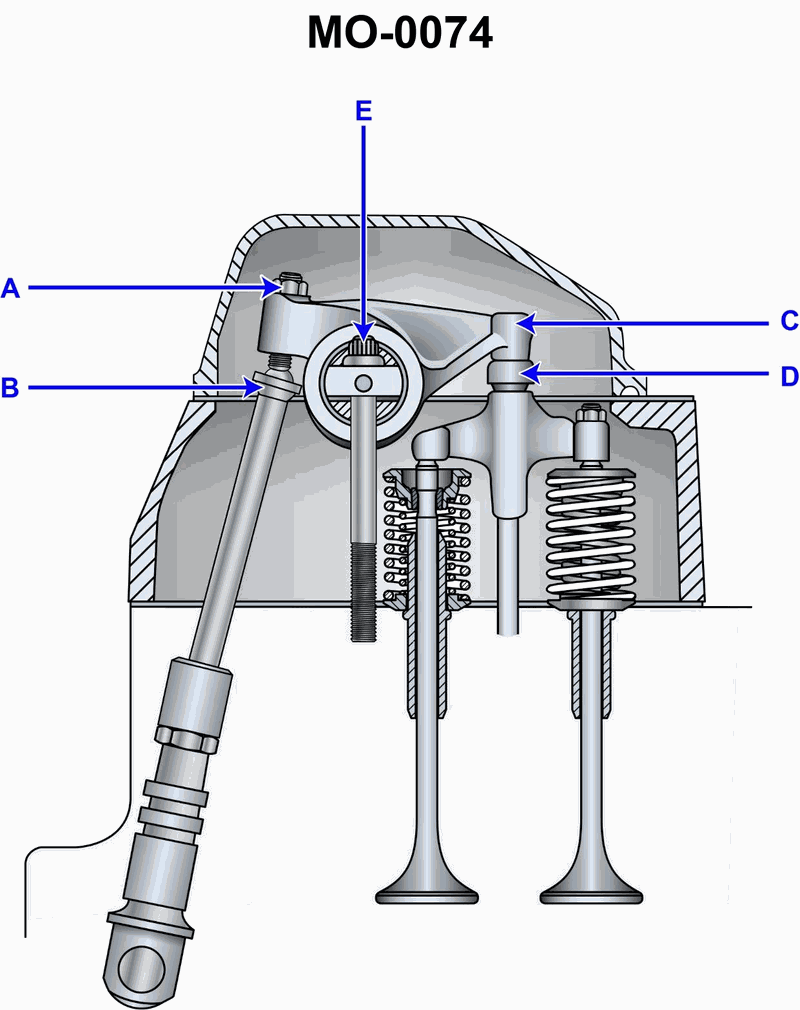

Which of the following statements would apply when checking the valve clearance of the unit shown in the illustration? Illustration MO-0074

Back

Question 1 of 20

66636eef28f7522a1c51fbae

Which of the following statements would apply when checking the valve clearance of the unit shown in the illustration? Illustration MO-0074

No comments yet

Be the first to share your thoughts!

If the question has a related picture, it will appear here.

🔍 Key Concepts

• Identify which components normally form the valve lash (tappet clearance) surface in an overhead valve system • Recall where the feeler gauge is inserted when checking cold valve clearance on a rocker-arm type valve train • Determine which point in the rocker mechanism is used for mechanical adjustment (locknut/adjusting screw) rather than for measurement

💭 Think About

• Look carefully at the labeled points A, B, C, D, and E and decide which pair actually separates when the valve is fully closed and the pushrod is on the cam’s base circle • Ask yourself: where would a mechanic realistically slip a flat feeler gauge blade in this layout—between the rocker and the valve stem tip, or somewhere on the pushrod side? • Which labeled point clearly shows an adjusting screw and locknut arrangement, and which labeled point is simply a contact surface?

✅ Before You Answer

• Verify which surfaces are the rocker arm-to-valve stem contact, as this is the typical location for measuring valve lash on this style of engine • Confirm which labeled point represents the adjusting screw/locknut used to change that clearance mechanically • Eliminate any option that suggests measuring clearance where there is no sliding contact surface suitable for a feeler gauge

👋 Hi! I'm Genie, your AI study assistant. How can I help you with this question?

Quick actions

— No credit card needed

Question 1 of 20

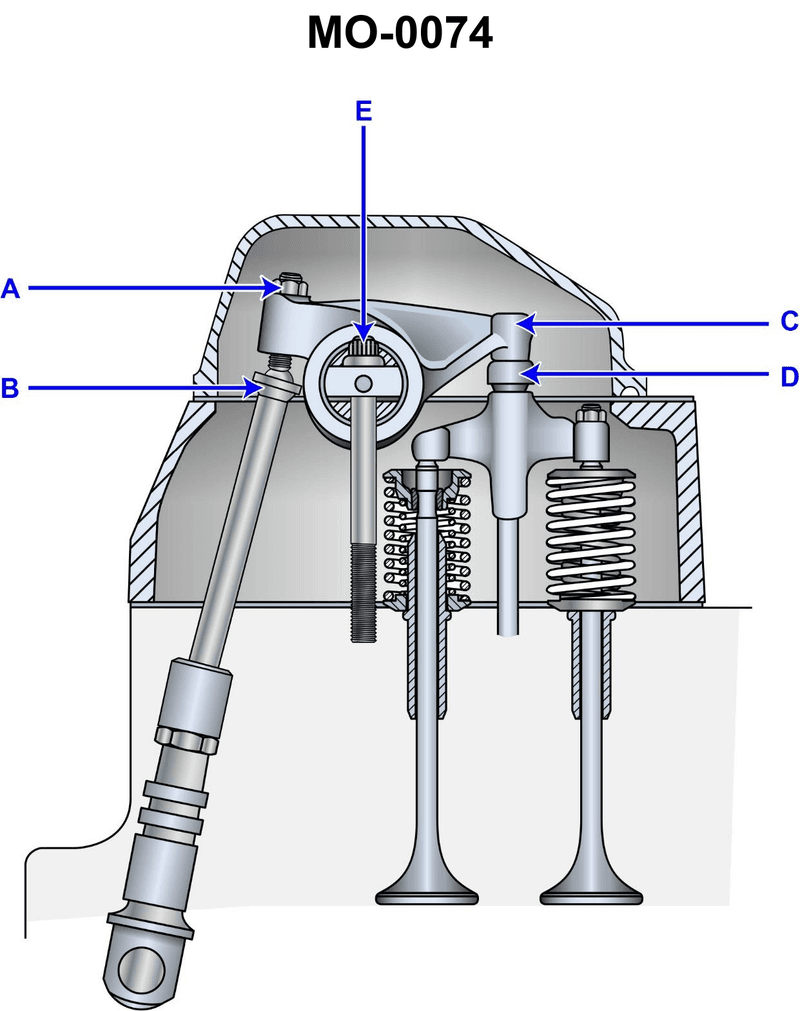

Which of the following statements would apply when checking the valve clearance of the unit shown in the illustration? Illustration MO-0074

Tappet clearance is measured between points "A" and "B".

Cold valve clearance is measured between components "C" and "D".

The valve is mechanically adjusted at point "D".

The valve is mechanically adjusted at point "E".
