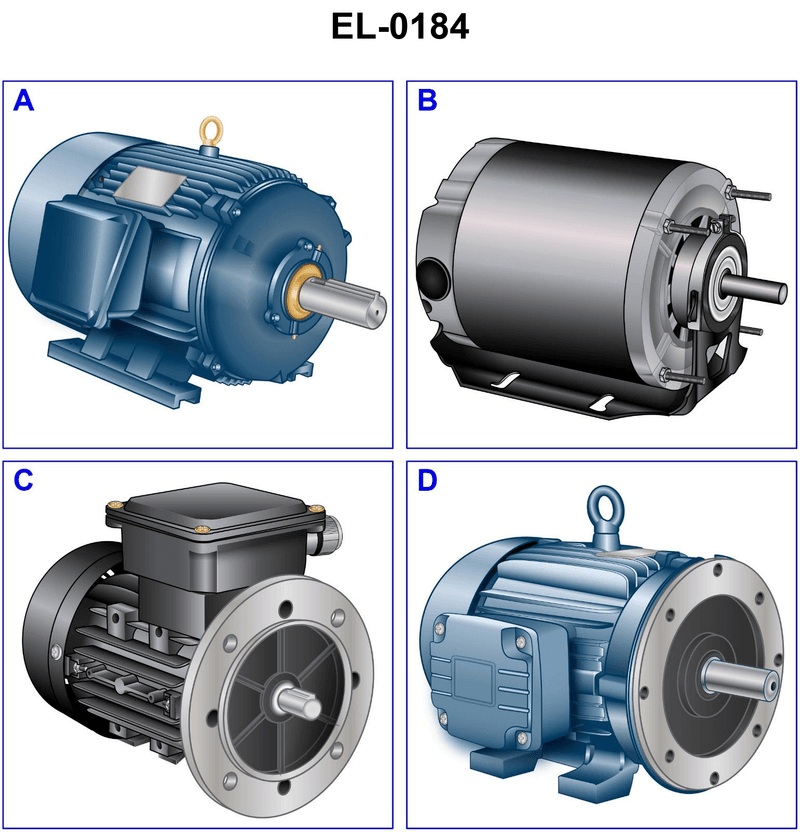

Which of the following motors has a frame configuration for solid base mounting only? Illustration EL-0184

Back

Question 1 of 27070

Which of the following motors has a frame configuration for solid base mounting only? Illustration EL-0184

If the question has a related picture, it will appear here.

🔍 Key Concepts

• Look closely at the base or feet of each motor and how it would physically attach to a support. • Distinguish between foot-mounted (base mounted), flange-mounted, and combined flange/foot-mounted motors. • Notice whether any motor appears to have resilient or cradle-type mounts versus a rigid, solid base that bolts directly to a foundation.

💭 Think About

• For each motor, ask yourself: Would this be bolted down flat to a deck or bedplate, or is it meant to be supported mainly by a flange or cradle? • Which illustration shows a motor that does not rely on a flange or special cradle and instead uses only rigid feet for mounting? • Is there any motor whose base looks like it has rubber or flexible supports, meaning it is not a solid-base configuration?

✅ Before You Answer

• Identify which motors use a flange for mounting (front plate with multiple bolt holes around the shaft). • Identify any motor that sits in a cradle or flexible mount, rather than a flat base with bolt holes at the corners. • From the remaining choices, select the one with a rigid foot/base only, intended to bolt directly to a solid surface without any flange.
