Which of the following leak detectors is...

Question 1 / 270705eccef9ebacbc34ba4d4619b

Question 1 of 270705eccef9ebacbc34ba4d4619b

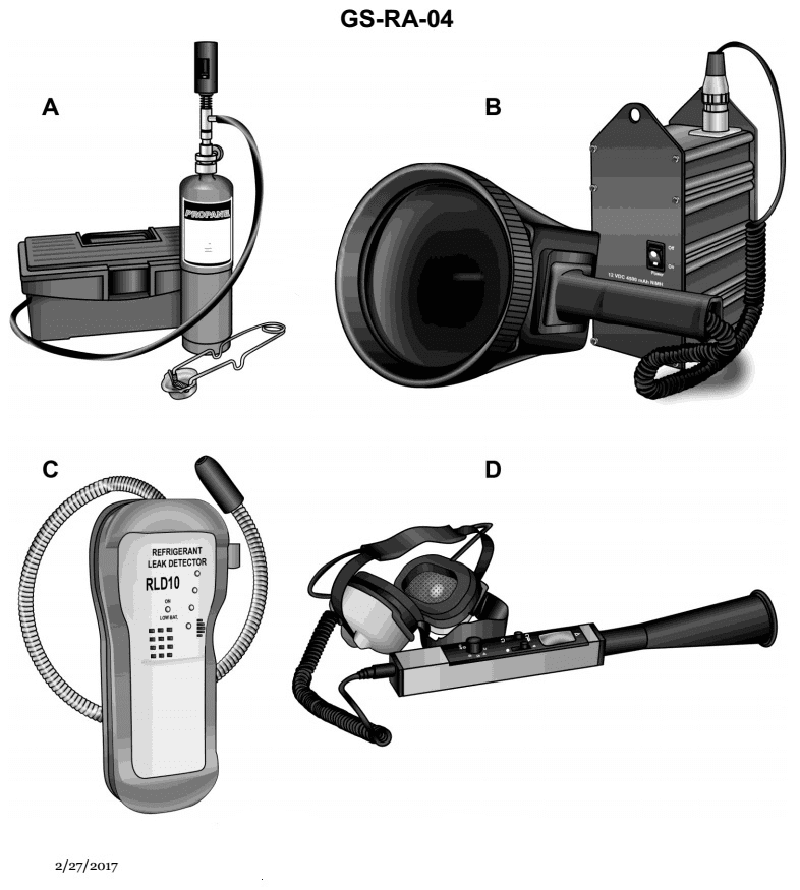

Which of the following leak detectors is fitted with a copper reaction plate? See illustration GS-RA-04.

Back

Question 1 of 27070

Q

Which of the following leak detectors is fitted with a copper reaction plate? See illustration GS-RA-04.

If the question has a related picture, it will appear here.

🔍 Key Concepts

• Halide leak detector (halide torch) construction and how it senses refrigerant leaks • Which type of detector uses a heated copper plate that changes color in the flame when halogen refrigerant is present • Differences between electronic, sonic/ultrasonic, and halide torch leak detectors as shown in the illustration

💭 Think About

• Look at each device and think about which one uses a flame and which ones are purely electronic or acoustic instruments • Ask yourself: in which of these designs would a small copper plate or coil need to be heated for a color change to occur? • Match the equipment in the picture to what you know a halide torch setup looks like from refrigeration practice

✅ Before You Answer

• Identify which option includes a gas cylinder and burner assembly, since the copper plate must be heated in a flame • Eliminate detectors that are clearly handheld electronic sensors or sound-based leak finders with headphones or large funnels • Before choosing, be sure you can describe in your own words how the copper reaction plate works in that detector type

Question 1 of 27070

Q

Which of the following leak detectors is fitted with a copper reaction plate? See illustration GS-RA-04.

A

B

C

D
